Antenna - Satellite Radio

Removal and Installation

NOTE: This procedure applies to both the stand-alone satellite radio antenna and the combination satellite radio/Global Positioning System (GPS) antenna.

1. Lower the headliner. For additional information, refer to Section 501-05.

2. Remove the satellite radio antenna in the following sequence:
   1. Disconnect the satellite radio antenna cable connector.
   2. Loosen the satellite radio antenna bolt.
      • To install, tighten to 6 Nm (53 lb-in).

3. Remove the satellite radio antenna from the top of the roof.

4. To install, reverse the removal procedure.

Antenna Cable - Satellite Radio

Rear Satellite Radio Antenna Cable

Front And Middle Satellite Radio Antenna Cables

NOTE: The front satellite radio antenna cable with navigation is shown.

NOTE: The glove compartment is shown removed for clarity.

Removal

NOTE: The satellite radio antenna cables are part of the vehicle wiring harness. Because the cables cannot be removed from the harness, this procedure applies to replacement of the cables only.

NOTE: For vehicles with navigation, a splitter is built-in to the front satellite radio antenna cable to split the satellite radio and Global Positioning System (GPS) signals.

Front cable

1. Remove the Audio Front Control Module (ACM). For additional information, refer to Audio Control Module (ACM) in this section.

Rear cable

2. Lower the headliner. For additional information, refer to Section 501-05.

3. Disconnect the cable from the antenna.

Middle cable

4. Remove the RH front and RH rear sill panels by pulling straight upward.

All cables

5. Disconnect the appropriate satellite radio antenna cable in-line connection(s).

6. Cut the ends of the existing cable and tape them back to prevent NVH concerns.

Installation

All cables

1. Overlay the new satellite radio antenna cable on the vehicle wiring harness, following the routing of the original cable.

2. Secure the new satellite radio antenna cable with tape or zip ties, as necessary.
   • For the front satellite radio antenna cable on vehicles with navigation, secure the splitter using the built-in push-pins.

3. Connect the appropriate satellite radio antenna cable in-line connection(s).

Front cable

4. Install the ACM. For additional information, refer to Audio Control Module (ACM) in this section.

Middle cable

5. Install the RH front and RH rear sill panels.

Rear cable

6. Connect the rear satellite radio antenna cable to the antenna.

7. Install the headliner. For additional information, refer to Section 501-05.

Antenna Cable - AM/FM

NOTE: Only the front AM/FM antenna cable is shown.

NOTE: The glove compartment is shown removed for clarity.

Removal

NOTE: Both the front and rear AM/FM antenna cables are part of the vehicle wiring harness. Because the cables cannot be removed from the harness, this procedure applies to replacement of the cables only.

Front cable

1. Remove the Audio Front Control Module (ACM). For additional information, refer to Audio Control Module (ACM) in this section.

Rear cable

2. Lower the headliner. For additional information, refer to Section 501-05.

3. Disconnect the rear AM/FM antenna cable from the antenna module.

4. Remove the RF and RR door sill trim panels. For additional information, refer to Section 501-05.

Both cables

5. Disconnect the front-to-rear AM/FM antenna cable connection at the RH kick panel.

6. Cut the ends of the existing cable and tape them back to prevent NVH concerns.

Installation

Both cables

1. Overlay the new AM/FM antenna cable on the vehicle wiring harness, following the routing of the original cable.

2. Secure the new AM/FM antenna cable with tape or zip ties, as necessary.

3. Connect the front-to-rear AM/FM antenna cable connection at the RH kick panel.

Front cable

4. Install the ACM. For additional information, refer to Audio Control Module (ACM) in this section.

Rear cable

5. Install the RF and RR door sill trim panels. For additional information, refer to Section 501-05.

6. Connect the rear AM/FM antenna cable to the antenna module.

7. Install the headliner. For additional information, refer to Section 501-05.

Antenna Module

Removal and Installation

1. Lower the headliner. For additional information, refer to Section 501-05.

2. Disconnect the antenna module-to-antenna cable connectors.

3. Remove the bolt and the antenna module.

4. To install, reverse the removal procedure.

Audio Input Jack

NOTE: Stowage bin door shown removed for clarity.

Removal and Installation

All vehicles

1. Open the floor console stowage bin door.

2. Using a suitable tool such as a trim removal tool, remove the audio input jack bezel by prying straight back.
   • Disconnect the electrical connector.

3. Release the tabs and remove the audio input jack.

Police vehicles

4. Remove the face plate.
   • Disconnect the 2 electrical connectors.

5. Release the tabs and remove the audio input jack.

All vehicles

6. To install, reverse the removal procedure.

Audio Control Module (ACM)

NOTE: Without navigation shown, with navigation similar.

Removal and Installation

NOTE: It is not necessary to remove the Audio Front Control Module (ACM) to retrieve the part number. For additional information, refer to Audio Control Module (ACM) Self-Diagnostic Mode in this section.

1. NOTE: Module configuration is required when a new ACM is being installed.

   Upload the ACM configuration information to the scan tool. For additional information, refer to Programmable Module Installation (PMI) in Section 418-01.

2. Remove the FCDIM. For additional information, refer to Front Controls/Display Interface Module (FCDIM) in this section.

3. Remove the 4 screws and the ACM.
   • Disconnect the electrical connectors.

4. To install, reverse the removal procedure.
   • Download the ACM configuration information from the scan tool. For additional information, refer to PMI in Section 418-01.

Front Controls Interface Module (FCIM)

Removal and Installation

1. Remove the center instrument panel finish panel. For additional information, refer to Section 501-12.

2. Release the 4 center register clips and remove the center registers.

3. To install, reverse the removal procedure.

Global Positioning System Module (GPSM)

NOTE: Steering wheel shown removed for clarity only.

Removal and Installation

NOTE: Prior to replacement of the module, it is necessary to upload the module configuration information to the appropriate scan tool. This information must be downloaded into the new module after installation. For additional information, refer to Section 418-01.

1. NOTE: This step is necessary only if the GPSM is being replaced. Upload the module configuration information from the GPSM into the scan tool. For additional information, refer to Section 418-01.

2. Remove the Instrument Panel Cluster (IPC). For additional information, refer to Section 413-01.

3. Release the clip and remove the Global Positioning System Module (GPSM).
   • Disconnect the electrical connector.

4. NOTE: If installing a new GPSM, make sure to download the GPSM configuration information from the scan tool into the new GPSM. For additional information, refer to Section 418-01.

   To install, reverse the removal procedure.

Speaker - Door

NOTE: Front door shown, rear door similar.

Removal and Installation

1. Remove the door trim panel. For additional information, refer to Section 501-05.

2. Remove the 4 screws and the door speaker.
   • Disconnect the electrical connector(s).

3. If removing the bracket, remove the 3 screws and the door speaker bracket.

4. To install, reverse the removal procedure.

Speaker - Parcel Shelf

NOTE: RH side shown, LH side similar.

Removal and Installation

1. Remove the parcel shelf. For additional information, refer to Section 501-05.

2. Remove the 4 screws and the parcel shelf speaker.
   • Disconnect the electrical connector.

3. To install, reverse the removal procedure.

Speaker - A-Pillar

Removal and Installation

1. Remove the A-pillar trim panel. For additional information, refer to Section 501-05.

2. Release the clips and remove the A-pillar speaker.

3. To install, reverse the removal procedure.

Accessory Protocol Interface Module (APIM)

Removal and Installation

All vehicles except police

1. Remove the floor console. For additional information, refer to Section 501-12.

2. Remove the floor console rear trim panel by pulling straight back to disengage the clips.
   • Disconnect the electrical connectors.

3. Disconnect the Accessory Protocol Interface Module (APIM) electrical connector and the Universal Serial Bus (USB) cable.

4. Remove the 4 screws and the APIM.

Police vehicles

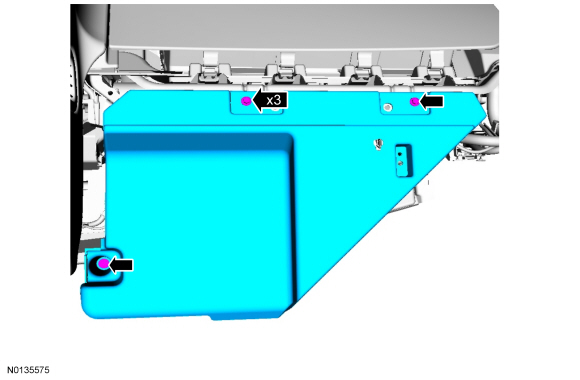

5. Remove the hush panel from the lower right side of the instrument panel.

6. Remove the 4 screws and remove the APIM.
   • Disconnect the electrical connectors.
   • To install, tighten to 2.5 Nm (23 lb-in).

All vehicles

7. To install, reverse the removal procedure.
   • If installing a new APIM, refer to Accessory Protocol Interface Module (APIM) Programming.

Universal Serial Bus (USB) Cable and Port

Removal and Installation

All vehicles except police

1. Remove the Accessory Protocol Interface Module (APIM). For additional information, refer to Accessory Protocol Interface Module (APIM).

2. Remove the 6 screws (3 each side) from the LH and RH floor console rear side trim panels.

3. NOTE: Release the 2 clips at the rear of the LH and RH floor console side trim panels in order to remove the floor console rear trim panels.

   Disengage the clips and remove the LH and RH floor console rear side trim panels.

4. Release the 2 rear clips and remove the stowage bin by rotating the rear edge upwards, then lifting the entire bin.
   • Disconnect the audio input jack electrical connector.
   • Disconnect the power point electrical connector.
   • Disconnect the Universal Serial Bus (USB) cable and port.

5. If equipped, remove the 6 screws and the floor console air duct.

Police vehicles

6. Remove the hush panel from the lower right side of the instrument panel.

7. Disconnect the Universal Serial Bus (USB) cable from the APIM.

8. Remove face the place and disconnect the Universal Serial Bus (USB) cable.

9. Detach the Universal Serial Bus (USB) cable retainers.

All vehicles

10. Remove the Universal Serial Bus (USB) cable and port.

11. To install, reverse the removal procedure.

Front Controls/Display Interface Module (FCDIM)

Removal and Installation

1. Remove the center instrument panel finish panel. For additional information, refer to Section 501-12.

2. Remove the 4 screws and remove the Front Control/Display Interface Module (FCDIM).
   • Disconnect the electrical connector.
   • To install, tighten to 2.5 Nm (23 lb-in).

3. To install, reverse the removal procedure.

Microphone

Removal

NOTE: If the microphone is removed from the headliner, a new microphone must be installed.

1. Pry the microphone bezel from the headliner metal mounting bracket and remove the microphone from the headliner by grasping the microphone pigtail.
   • Disconnect the electrical connector.

Installation

1. Reconnect the microphone electrical connector.

2. Wrap the connection with anti-rattle tape.

3. Feed the microphone pigtail into the headliner through the microphone hole.
   • Verify the microphone pigtail points towards the front of the vehicle.

4. Snap the microphone into the headliner mounting bracket.
   • Verify the mounting bracket and microphone are snug to the headliner.
