Handles, Locks, Latches and Entry Systems
Special Tool(s)
Material
DTC Charts
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
DDM DTC Chart
BCM DTC Chart
RFA Module DTC Chart
Symptom Charts
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.

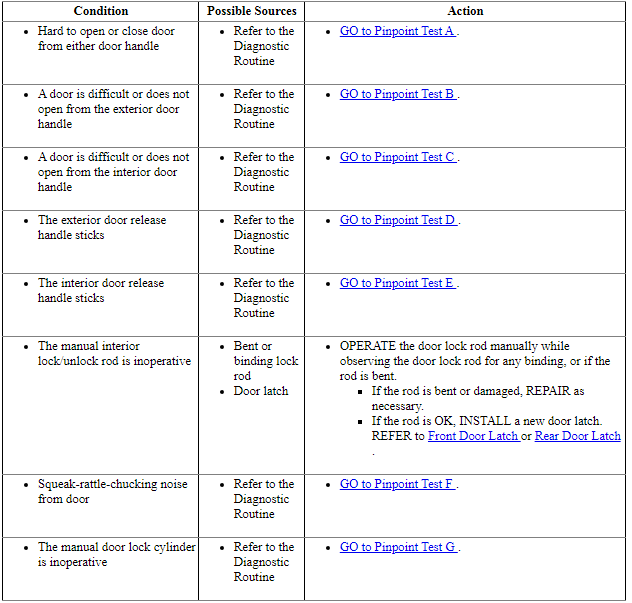

Symptom Chart - Mechanical
Symptom Chart - Electrical
Pinpoint Tests
Pinpoint Test A: Hard To Open Or Close Door From Either Door Handle
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Normal Operation and Fault Conditions
The door latch can be actuated from the interior or exterior door handle. When actuated, the door latch releases and allows the door to open. If the door latch or the door hinges have insufficient lubrication or if the striker or door are misaligned, it causes extra force to be used when opening or closing the door.
-
Possible Sources
- Door alignment
- Door hinges
- Striker adjustment
- Door latch
PINPOINT TEST A: HARD TO OPEN OR CLOSE DOOR FROM EITHER DOOR HANDLE
Pinpoint Test B: A Door Is Difficult Or Does Not Open From The Exterior Door Handle
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Normal Operation and Fault Conditions
The exterior door handle is connected to the door latch with an actuating rod. When the exterior door handle is pulled, the actuating rod pushes down on the latch lever. When the latch lever is moved, the door latch releases, allowing the door to open.
-
Possible Sources
- Broken or binding linkage
- Exterior door handle reinforcement
- Door latch
PINPOINT TEST B: A DOOR IS DIFFICULT OR DOES NOT OPEN FROM THE EXTERIOR DOOR HANDLE
Pinpoint Test C: A Door Is Difficult Or Does Not Open From The Interior Door Handle
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Normal Operation and Fault Conditions
The interior door handle is connected to the door latch by an actuating cable. When the interior door handle is pulled, the cable pulls on the latch lever. When the latch lever is moved, the door latch releases, allowing the door to open.
-
Possible Sources
- Broken or binding cable/linkage
- Door latch
Visual Inspection and Diagnostic Pre-checks
- For the rear doors, make sure the child proof lock is in the unlock position.
PINPOINT TEST C: A DOOR IS DIFFICULT/DOES NOT OPEN FROM THE INTERIOR DOOR HANDLE
Pinpoint Test D: The Exterior Door Release Handle Sticks
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Normal Operation and Fault Conditions
The exterior door handle is connected to the door latch with an actuating rod. When the exterior door handle is pulled, the actuating rod pushes down on the latch lever. When the latch lever is moved, the door latch releases, allowing the door to open. The handle has a return spring to make sure the handle returns to a closed position.
-
Possible Sources
- Binding linkage
- Broken handle return spring
- Door latch
PINPOINT TEST D: THE EXTERIOR DOOR RELEASE HANDLE STICKS
Pinpoint Test E: The Interior Door Release Handle Sticks
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Normal Operation and Fault Conditions
The interior door handle is connected to the door latch by an actuating cable. When the interior door handle is pulled, the cable pulls on the latch lever. When the latch lever is moved, the door latch releases, allowing the door to open. The handle has a return spring to make sure the handle returns to a closed position.
-
Possible Sources
- Binding cable
- Broken handle return spring
- Door latch
PINPOINT TEST E: THE INTERIOR DOOR RELEASE HANDLE STICKS
Pinpoint Test F: Squeak-Rattle-Chucking Noise From Door
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
-
Possible Sources
- Door alignment
- Striker adjustment
- Door latch
PINPOINT TEST F: SQUEAK-RATTLE-CHUCKING NOISE FROM DOOR
Pinpoint Test G: The Manual Door Lock Cylinder Is Inoperative
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Normal Operation and Fault Conditions
The door lock cylinder is connected to the door latch via a lock rod and can be used to manually lock/unlock the door.
-
Possible Sources
- Bent or binding lock rod and lever
- Door lock cylinder
- Door latch
PINPOINT TEST G: THE MANUAL DOOR LOCK CYLINDER IS INOPERATIVE
Pinpoint Test H: All Door Locks Are Inoperative
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Refer to Wiring Diagrams Cell 117, Remote Keyless Entry and Alarm for schematic and connector information.
Normal Operation and Fault Conditions
Refer to System Operation - Power Door Locks in Handles, Locks, Latches and Entry Systems.
-
Possible Sources
- Fuse
- Wiring, terminals or connectors
- RFA module
Visual Inspection and Diagnostic Pre-checks
- Inspect the BCM fuse 27 (20A) and make sure it is OK.
PINPOINT TEST H: ALL DOOR LOCKS ARE INOPERATIVE
Pinpoint Test I: A Single Or More Than One Door Lock Is Inoperative
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Refer to Wiring Diagrams Cell 117, Remote Keyless Entry and Alarm for schematic and connector information.
Normal Operation and Fault Conditions
Refer to System Operation - Power Door Locks in Handles, Locks, Latches and Entry Systems.
-
Possible Sources
- Wiring, terminals or connectors
- Door latch
- RFA module
Visual Inspection and Diagnostic Pre-checks
- Inspect for a binding lock rod.

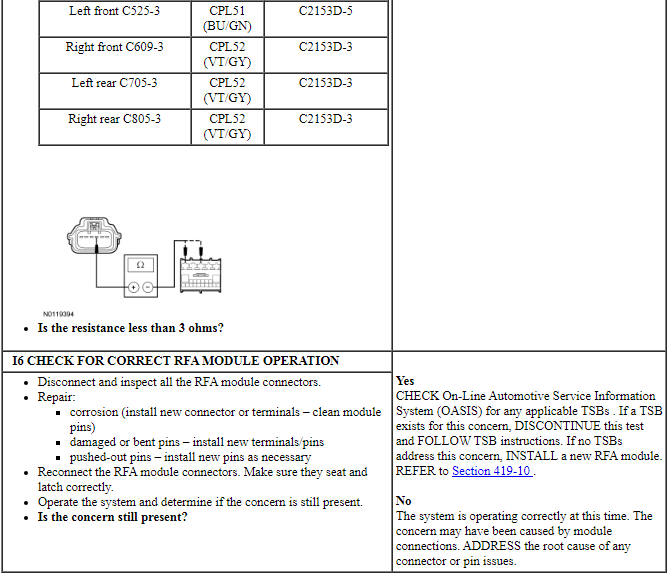

PINPOINT TEST I: A SINGLE OR MORE THAN ONE DOOR LOCK IS INOPERATIVE
Pinpoint Test J: The Door Locks Operate Only One Way
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Refer to Wiring Diagrams Cell 117, Remote Keyless Entry and Alarm for schematic and connector information.
Normal Operation and Fault Conditions
Refer to System Operation - Power Door Locks in Handles, Locks, Latches and Entry Systems.
Refer to Component Description - Door Lock Control Switch in Handles, Locks, Latches and Entry Systems.
BCM DTC Fault Trigger Conditions
DDM DTC Fault Trigger Conditions
-
Possible Sources
- Wiring, terminals or connectors
- Door lock control switch
- DDM
- BCM
Visual Inspection and Diagnostic Pre-checks
- Inspect the door lock control switches for damage.
PINPOINT TEST J: THE DOOR LOCKS OPERATE ONLY ONE WAY
NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
Pinpoint Test K: All Door Locks Are Inoperative From One Switch
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Refer to Wiring Diagrams Cell 117, Remote Keyless Entry and Alarm for schematic and connector information.
Normal Operation and Fault Conditions
Refer to System Operation - Power Door Locks in Handles, Locks, Latches and Entry Systems.
Refer to Component Description - Door Lock Control Switch in Handles, Locks, Latches and Entry Systems.
-
Possible Sources
- Wiring, terminals or connectors
- Door lock control switch
- Network communcation concern
Visual Inspection and Diagnostic Pre-checks
- Inspect the door lock control switches for damage.
PINPOINT TEST K: ALL DOOR LOCKS ARE INOPERATIVE FROM ONE SWITCH
Pinpoint Test L: The Luggage Compartment Lid Latch Release Is Inoperative
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Refer to Wiring Diagrams Cell 117, Remote Keyless Entry and Alarm for schematic and connector information.
Normal Operation and Fault Conditions
Refer to System Operation - Luggage Compartment Lid Release in Handles, Locks, Latches and Entry Systems.
RFA Module DTC Fault Trigger Conditions
-
Possible Sources
- Wiring, terminals or connectors
- Luggage compartment lid release switch
- Luggage compartment lid latch
- RFA module

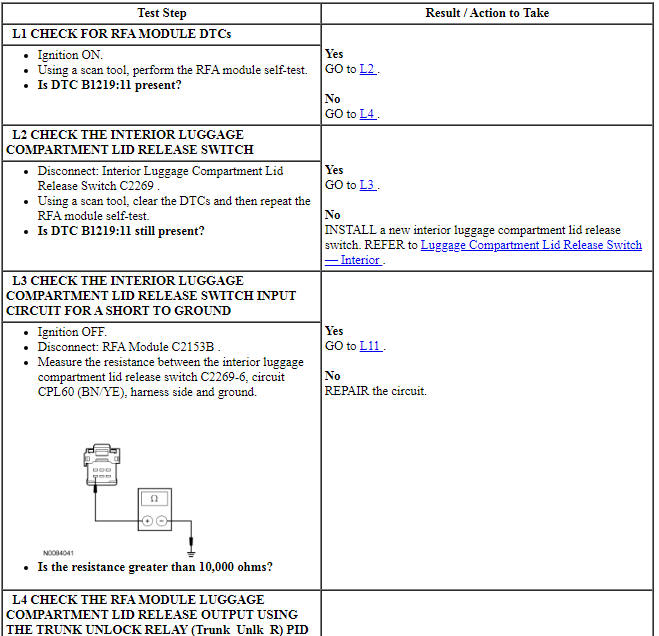

PINPOINT TEST L: THE LUGGAGE COMPARTMENT LID LATCH RELEASE IS INOPERATIVE
NOTE: If the luggage compartment lid releases from the interior switch but not the RKE transmitter, GO to Pinpoint Test P.
NOTE: If the luggage compartment lid releases from the interior switch but not the IA feature, GO to Pinpoint Test S.
Pinpoint Test M: The Doors Do Not Lock Or Unlock Using The Keyless Entry Keypad
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Refer to Wiring Diagrams Cell 117, Remote Keyless Entry and Alarm for schematic and connector information.
Normal Operation and Fault Conditions
Refer to System Operation - Keyless Entry Keypad in Handles, Locks, Latches and Entry Systems.
Refer to Component Description - Keyless Entry Keypad in Handles, Locks, Latches and Entry Systems.
RFA Module DTC Fault Trigger Conditions
-
Possible Sources
- Wiring, terminals or connectors
- Keyless entry keypad
- RFA module
Visual Inspection and Diagnostic Pre-checks
- Inspect the keyless entry keypad for damage.
- Inspect the BCM fuse 7 (7.5A) and make sure it is OK.

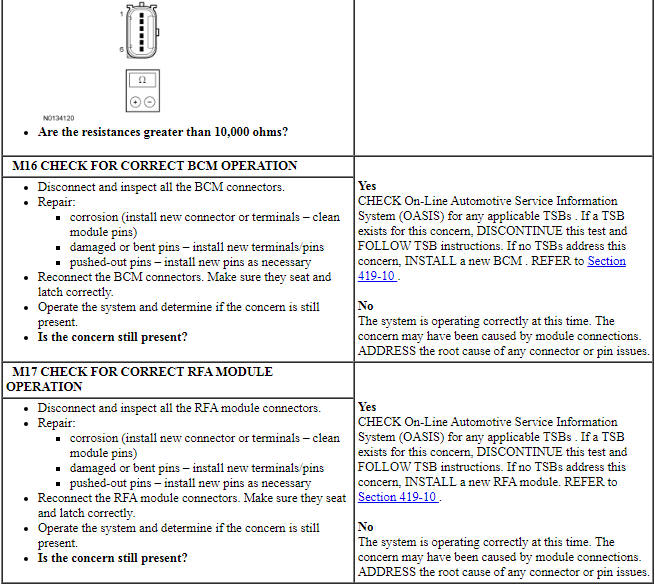

PINPOINT TEST M: THE DOORS DO NOT LOCK OR UNLOCK USING THE KEYLESS ENTRY KEYPAD
Pinpoint Test N: The Keyless Entry Keypad Illumination Is Inoperative Or Always On
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Refer to Wiring Diagrams Cell 117, Remote Keyless Entry and Alarm for schematic and connector information.
Normal Operation and Fault Conditions
Refer to System Operation - Keyless Entry Keypad in Handles, Locks, Latches and Entry Systems.
Refer to Component Description - Keyless Entry Keypad in Handles, Locks, Latches and Entry Systems.
RFA Module DTC Fault Trigger Conditions
-
Possible Sources
- Wiring, terminals or connectors
- Keyless entry keypad
- RFA module
Visual Inspection and Diagnostic Pre-checks
- Inspect the keyless entry keypad for damage.
PINPOINT TEST N: THE KEYLESS ENTRY KEYPAD ILLUMINATION IS INOPERATIVE OR ALWAYS ON
Pinpoint Test O: The RKE Transmitter Is Inoperative
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Normal Operation and Fault Conditions
Refer to System Operation - Remote Keyless Entry (RKE) in Handles, Locks, Latches and Entry Systems.
Refer to Component Description - Integrated Keyhead Transmitter (IKT) in Handles, Locks, Latches and Entry Systems.
RFA Module DTC Fault Trigger Conditions
-
Possible Sources
- IA key
- IA key battery
- IA key button pressed a substantial amount of times while outside the range of the vehicle
- IA key programming
- TPM module
- RFA module
Visual Inspection and Diagnostic Pre-checks
- Inspect the IA key for damage.
PINPOINT TEST O: THE RKE TRANSMITTER IS INOPERATIVE

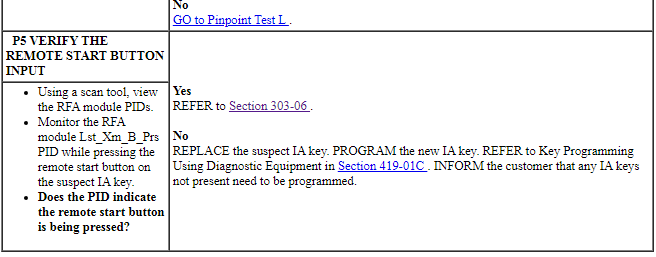

Pinpoint Test P: An Individual Button Or Feature Is Inoperative From The RKE Transmitter
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Normal Operation and Fault Conditions
Refer to System Operation - Remote Keyless Entry (RKE) in Handles, Locks, Latches and Entry Systems.
Refer to Component Description - Integrated Keyhead Transmitter (IKT) in Handles, Locks, Latches and Entry Systems.
-
Possible Sources
- Door lock system concern
- Horn system concern
- Luggage compartment lid release system concern
- Factory remote start system concern
- Turn signal system concern
- IA key
Visual Inspection and Diagnostic Pre-checks
- Inspect the IKT for damage.
PINPOINT TEST P: AN INDIVIDUAL BUTTON OR FEATURE IS INOPERATIVE FROM THE RKE TRANSMITTER
Pinpoint Test Q: The RKE Transmitter Has Poor Range Performance
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Normal Operation and Fault Conditions
The RKE transmitter has a normal operating range of 20 m (66 ft). The TPM module has an internal antenna to receive the RKE transmitter signal.
-
Possible Sources
- IA key
- IA key battery
- Aftermarket system
- High power devices
- TV/radio transmission towers
- TPM module
Visual Inspection and Diagnostic Pre-checks
- Inspect the IA key for damage.
- Inspect the IA key battery.
- Inspect for aftermarket RKE systems.
PINPOINT TEST Q: THE RKE TRANSMITTER HAS POOR RANGE PERFORMANCE
NOTE: A least 2 programmed IA keys must be present to begin diagnosis of the RKE system.
Pinpoint Test R: A Front Door IA Feature Is Inoperative
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Refer to Wiring Diagrams Cell 117, Remote Keyless Entry and Alarm for schematic and connector information.
Normal Operation and Fault Conditions
Refer to System Operation - Intelligent Access (IA) in Handles, Locks, Latches and Entry Systems.
RFA Module DTC Fault Trigger Conditions
-
Possible Sources
- Wiring, terminals or connectors
- IA antenna (part of the exterior front door handle)
- Lock/unlock sensors (part of the exterior front door handle)
- IA key
- TPM module
- RFA module
Visual Inspection and Diagnostic Pre-checks
- Inspect the exterior front door handle for damage.
- Inspect the IA key for damage.
PINPOINT TEST R: A FRONT DOOR IA FEATURE IS INOPERATIVE
NOTE: The IA feature is a programmable parameter and can be enabled/disabled with a scan tool. If the feature is disabled, the IA feature to enter the vehicle and passive starting is inoperative. To start the vehicle, the IA key must be placed in the backup transceiver slot.
Pinpoint Test S: The Luggage Compartment Lid IA Feature Is Inoperative
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Refer to Wiring Diagrams Cell 117, Remote Keyless Entry and Alarm for schematic and connector information.
Normal Operation and Fault Conditions
Refer to System Operation - Intelligent Access (IA) in Handles, Locks, Latches and Entry Systems.
RFA Module DTC Fault Trigger Conditions
-
Possible Sources
- Wiring, terminals or connectors
- Exterior luggage compartment lid release switch
- Luggage compartment lid IA antenna
- IA key
- TPM module
- RFA module
Visual Inspection and Diagnostic Pre-checks
- Inspect the rear bumper cover for damage.
- Inspect the exterior luggage compartment lid release switch for damage.
- Inspect the IA key for damage.
PINPOINT TEST S: THE LUGGAGE COMPARTMENT LID IA FEATURE IS INOPERATIVE
NOTE: The IA feature is a programmable parameter and can be enabled/disabled with a scan tool. If the feature is disabled, the IA feature to enter the vehicle and passive starting is inoperative. To start the vehicle, the IA key must be placed in the backup transceiver slot.
Pinpoint Test T: DTCs B106E, B106F
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Normal Operation and Fault Conditions
The DDM controls the output of several vehicle systems by means of solid state drivers. A DTC sets when an overload occurs on any of these drivers. The module also tracks the number of repetitive faults on each of these circuits, and then it compares that number of overloads to 3 progressive thresholds established for each circuit. If the third threshold has not been met, the DTC for the affected circuit can be cleared by eliminating the fault, clearing the DTCs and then running a self-test.
At the point that each of the first 2 thresholds is met, DTC B106E sets along with a DTC related to the affected circuit. Once the final (third) threshold has been met, the affected output is permanently disabled, and DTC B106F sets, at which time the DDM must be replaced.
DDM DTC Fault Trigger Conditions
When DTC B1342 is set because the module has reached a third threshold and the DDM has permanently disabled an output, no DTCs can be cleared from the DDM. Using the module self-test to confirm a repair is not possible and a measurement using a digital multimeter of the affected output circuit is required to make sure the fault condition no longer exists.
-
Possible Sources
- DDM output circuit
- DDM
PINPOINT TEST T: DTCs B106E, B106F
Pinpoint Test U: DTC B1317
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Normal Operation and Fault Conditions
The DDM constantly monitors the voltage supply circuit. If the voltage exceeds a set parameter, the DDM sets a DTC.
DDM DTC Fault Trigger Conditions
-
Possible Sources
- Charging system concern
- DDM
PINPOINT TEST U: DTC B1317
NOTE: DTC B1317 may be stored in the module memory due to previous battery charging or vehicle jump starting events.
Pinpoint Test V: DTC B1318
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Refer to Wiring Diagrams Cell 13, Power Distribution/SJB for schematic and connector information.
Normal Operation and Fault Conditions
The DDM constantly monitors the voltage supply circuit. If the voltage exceeds a set parameter, the DDM sets a DTC.
DDM DTC Fault Trigger Conditions
-
Possible Sources
- Charging system concern
- High resistance
- DDM
PINPOINT TEST V: DTC B1318
Pinpoint Test W: DTC U0140
Diagnostic Overview
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. Refer to Diagnostic Methods in Section 100-00 for information about these practices.
Refer to Wiring Diagrams Cell 117, Remote Keyless Entry and Alarm for schematic and connector information.
Normal Operation and Fault Conditions
The DDM and the BCM communicate using the MS-CAN. Messages are exchanged between the modules on the MS-CAN for the purposes of determining what functions are being carried out.
DDM DTC Fault Trigger Conditions
-
Possible Sources
- Network communication concern
- DDM
- BCM
PINPOINT TEST W: DTC U0140
Specifications, Description and Operation
SPECIFICATIONS Material Torque Specifications DESCRIPTION AND OPERATION Handles, Locks, Latches and Entry Systems Overview The power lock/unlock feature locks or unlocks the doors upon a custo ...General Procedures
Keyless Entry Keypad Code Programming Remote Function Actuator (RFA) Module Keyless Entry Keypad Code Reset NOTE: This step is for transferring the factory keyless entry keycode from the BC ...Other materials:
Diagnosis and Testing
Airbag and Safety Belt Pretensioner Supplemental Restraint System (SRS)
DTC Charts
The DTCs can be retrieved from the RCM and the OCSM with a scan tool via
the DLC.
Restraints Control Module (RCM) DTC ChartNOTE: Always make sure the correct SRS component is b ...
Evaporative Emissions
SPECIFICATIONS
Torque Specifications
DESCRIPTION AND OPERATION
Evaporative Emissions
The EVAP system
consists of the:
EVAP canister purge valve.
EVAP canister.
dust separator and EVAP canister
vent solenoid assembly.
fuel vapor tube assembly (includes ...
Specifications, Description and Operation
SPECIFICATIONS
Material
Torque Specifications
a Refer
to the procedure for the specification.
General Specifications
Solenoid Operation Chart
a Turns
on above 8 km/h (5 mph).
b Turns
off above 8 km/h (5 mph).
CB = Clutch brake
NC = Normally closed
NH = Normally high
...
