Ford Taurus Service Manual: In-Vehicle Repair

Upper Intake Manifold

Removal

NOTICE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

  1. Remove theAir Cleaner (ACL) outlet pipe. For additional information, refer to Section 303-12.
  1. Disconnect the Evaporative Emission (EVAP) canister vent solenoid and throttle body electrical connectors.
    • Detach the wiring harness pin-type retainer from the upper intake manifold.

    Ford Taurus. Engine

  1. Disconnect the EVAP vapor tube from the EVAP canister vent solenoid. For additional information, refer to Section 310-00.
    • Detach the EVAP vapor tube from the 2 retainers.

    Ford Taurus. Engine

  1. Release the clamps and disconnect the power brake booster vacuum supply hose and crankcase ventilation hose from the upper intake manifold.

    Ford Taurus. Engine

  1. Detach the 2 coolant tube retainers from the upper intake manifold.

    Ford Taurus. Engine

  1. Remove the upper intake manifold support bracket bolt.

    Ford Taurus. Engine

  1. Remove the 7 bolts and the upper intake manifold.
    • Remove and discard the gasket.
    • Clean and inspect all of the sealing surfaces of the upper and lower intake manifold.

    Ford Taurus. Engine

Installation

  1. Using a new gasket, install the upper intake manifold and the 7 bolts.
    • Tighten in the sequence shown in 2 stages.
      • Stage 1: Tighten to 10 Nm (89 lb-in).
      • Stage 2: Tighten an additional 45 degrees.

    Ford Taurus. Engine

  1. Install the upper intake manifold support bracket bolt.
    • Tighten to 10 Nm (89 lb-in).

    Ford Taurus. Engine

  1. Attach the 2 coolant tube retainers to the upper intake manifold.

    Ford Taurus. Engine

  1. Connect the power brake booster vacuum supply hose and crankcase ventilation hose to the upper intake manifold.

    Ford Taurus. Engine

  1. Connect the EVAP vapor tube to the EVAP canister vent solenoid. For additional information, refer to Section 310-00.
    • Attach the EVAP vapor tube to the 2 retainers.

    Ford Taurus. Engine

  1. Connect the EVAP canister vent solenoid and throttle body electrical connectors.
    • Attach the wiring harness pin-type retainer to the upper intake manifold.

    Ford Taurus. Engine

  1. Install the ACL outlet pipe. For additional information, refer to Section 303-12.

Lower Intake Manifold

Removal

NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: It is not necessary to remove the fuel rail from the intake manifold assembly.

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02.
  1. Release the fuel system pressure. For additional information, refer to Section 310-00.
  1. Disconnect the battery ground cable. For additional information, refer to Section 414-01.
  1. Drain the cooling system. For additional information, refer to Section 303-03.
  1. Remove the upper intake manifold. For additional information, refer to Upper Intake Manifold in this section.
  1. Disconnect the 6 fuel injector electrical connectors.

    Ford Taurus. Engine

  1. Disconnect the fuel supply tube-to-fuel rail quick connect coupling. For additional information, refer to the quick connect coupling procedure in Section 310-00.
    • Remove the fuel supply tube-to-engine front cover bolt.

    Ford Taurus. Engine

  1. Remove the 2 thermostat housing-to-lower intake manifold bolts.

    Ford Taurus. Engine

  1. Remove the 10 bolts and the lower intake manifold.
    • Remove and discard the intake manifold and thermostat housing gaskets.
    • Clean and inspect all sealing surfaces.

    Ford Taurus. Engine

Installation

  1. NOTICE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

    Using new lower intake manifold and thermostat housing gaskets, install the lower intake manifold and the 10 bolts.

    • Tighten in the sequence shown to 10 Nm (89 lb-in).

    Ford Taurus. Engine

  1. Install the 2 thermostat housing-to-lower intake manifold bolts.
    • Tighten to 10 Nm (89 lb-in).

    Ford Taurus. Engine

  1. Connect the fuel supply tube-to-fuel rail quick connect coupling. For additional information, refer to the quick connect coupling procedure in Section 310-00.
    • Install the fuel supply tube-to-engine front cover bolt and tighten to 10 Nm (89 lb-in).

    Ford Taurus. Engine

  1. Connect the 6 fuel injector electrical connectors.

    Ford Taurus. Engine

  1. Install the upper intake manifold. For additional information, refer to Upper Intake Manifold in this section.
  1. Connect the battery ground cable. For additional information, refer to Section 414-01.
  1. Fill and bleed the cooling system. For additional information, refer to Section 303-03.

Valve Cover - LH

Special Tool(s)

Ford Taurus. Engine

Material

Ford Taurus. Engine

Removal

NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: Installation of new spark plug seals or Variable Camshaft Timing (VCT) seals is only required if seals are damaged.

  1. Remove the crankcase vent tube. For additional information, refer to the quick connect coupling in Section 310-00.

    Ford Taurus. Engine

  1. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

    Disconnect the 3 LH coil-on-plug electrical connectors and remove the 3 bolts and the 3 LH-coil-on-plugs.

    • Inspect the coil seals for rips, nicks or tears. Remove and discard any damaged coil seals.

    Ford Taurus. Engine

  1. Remove the oil level indicator.

    Ford Taurus. Engine

  1. Remove the 2 ground wire bolts from the engine front cover and the RH strut tower.

    Ford Taurus. Engine

  1. Remove the engine wiring harness from the LH valve cover.
    • Disconnect the 2 Variable Camshaft Timing (VCT) oil control solenoid electrical connectors.
    • Detach and disconnect the LH Heated Oxygen Sensor (HO2S) electrical connector.
    • Disconnect the 3 fuel injector electrical connectors.
    • Detach the 11 wiring harness retainers from the LH valve cover and stud bolts and position the harness aside.

    Ford Taurus. Engine

  1. NOTICE: While removing the valve cover do not apply excessive force to the Variable Camshaft Timing (VCT) oil control solenoid or damage may occur.

    NOTICE: If the Variable Camshaft Timing (VCT) oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

    Loosen the 4 bolts and 7 stud bolts.
    • Remove the valve cover.
    • Discard the gasket.

    Ford Taurus. Engine

  1. Inspect the VCT solenoid seals. Remove any damaged seals.
    • Using the Differential Bearing Cone Installer and Handle, remove and discard the seal(s).

    Ford Taurus. Engine

  1. Inspect the spark plug tube seals. Remove any damaged seals.
    • Using the Spark Plug Tube Seal Remover and Handle, remove and discard the seal(s).

    Ford Taurus. Engine

  1. Clean the valve cover, cylinder head and engine front cover sealing surfaces with metal surface prep.

Installation

  1. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using the VCT Spark Plug Tube Seal Installer and Handle, install new spark plug tube seals.

    Ford Taurus. Engine

  1. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using the Differential Bearing Cone Installer and Handle, install new VCT solenoid seal(s).

    Ford Taurus. Engine

  1. NOTICE: Failure to use Motorcraft High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

    NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

    Apply an 8 mm (0.31 in) bead of Motorcraft High Performance Engine RTV Silicone to the engine front cover-to-LH cylinder head joints.

    Ford Taurus. Engine

  1. Using a new gasket, install the LH valve cover and tighten the 4 bolts and 7 stud bolts.
    • Tighten in the sequence shown to 10 Nm (89 lb-in).

    Ford Taurus. Engine

  1. Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.

    Ford Taurus. Engine

  1. Install the engine wiring harness to the LH valve cover.
    • Position the wiring harness and attach the 11 wiring harness retainers to the LH valve cover and stud bolts.
    • Connect the 3 fuel injector electrical connectors.
    • Connect and attach the LH HO2S electrical connector.
    • Connect the 2 VCT oil control solenoid electrical connectors.

    Ford Taurus. Engine

  1. Position the ground wires to the engine front cover and the RH strut tower and install the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).

    Ford Taurus. Engine

  1. Install the oil level indicator.

    Ford Taurus. Engine

  1. NOTE: Apply a small amount of dielectric grease to the inside of the ignition coil-on-plug boots before attaching to the spark plugs.

    Install the 3 LH -coil-on-plugs and the 3 bolts.

    • Tighten to 7 Nm (62 lb-in.
    • Connect the 3 coil-on-plug electrical connectors.

    Ford Taurus. Engine

  1. Install the crankcase vent tube. For additional information, refer to the quick connect coupling in Section 310-00.

    Ford Taurus. Engine

Valve Cover - RH

Special Tool(s)

Ford Taurus. Engine

Material

Ford Taurus. Engine

Removal

NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: Installation of new spark plug seals or Variable Camshaft Timing (VCT) seals is only required if seals are damaged.

  1. Remove the upper intake manifold. For additional information, refer to Upper Intake Manifold.
  1. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

    Disconnect the 3 RH coil-on-plug electrical connectors and remove the 3 bolts and the 3 RH coil-on-plugs.

    • Inspect the coil seals for rips, nicks or tears. Remove and discard any damaged coil seals.

    Ford Taurus. Engine

  1. Remove the PCV crankcase vent tube.

    Ford Taurus. Engine

  1. Remove the engine wiring harness from the RH valve cover.
    • Disconnect the 2 Variable Camshaft Timing (VCT) oil control solenoid electrical connectors.
    • Detach and disconnect the RH Catalyst Monitor Sensor (CMS) electrical connector.
    • Disconnect the 3 fuel injector electrical connectors.
    • Disconnect the Cylinder Head Temperature (CHT) sensor wiring harness jumper electrical connector.
    • Detach the 9 wiring harness retainers from the RH valve cover and stud bolts and position the harness aside.

    Ford Taurus. Engine

  1. NOTICE: While removing the valve cover do not apply excessive force to the Variable Camshaft Timing (VCT) oil control solenoid or damage may occur.

    NOTICE: If the Variable Camshaft Timing (VCT) oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

    Loosen the 2 bolts and 9 stud bolts.
    • Remove the valve cover.
    • Discard the gasket.

    Ford Taurus. Engine

  1. Inspect the 2 VCT solenoid seals. Remove any damaged seals.
    • Using the Differential Bearing Cone Installer and Handle, remove the seal(s).

    Ford Taurus. Engine

  1. Inspect the spark plug tube seals. Remove any damaged seals.
    • Using the VCT Spark Plug Tube Seal Remover and Handle, remove the seal(s).

    Ford Taurus. Engine

  1. Clean the valve cover, cylinder head and engine front cover sealing surfaces with metal surface prep.

Installation

  1. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using the VCT Spark Plug Tube Seal Installer and Handle, install new spark plug tube seals.

    Ford Taurus. Engine

  1. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using the Differential Bearing Cone Installer and Handle, install new VCT solenoid seal(s).

    Ford Taurus. Engine

  1. NOTICE: Failure to use the correct Motorcraft High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

    NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

    Apply an 8 mm (0.31 in) bead of Motorcraft High Performance Engine RTV Silicone to the engine front cover-to-RH cylinder head joints.

    Ford Taurus. Engine

  1. Using a new gasket, install the RH valve cover and tighten the 2 bolts and 9 stud bolts.
    • Tighten in the sequence shown to 10 Nm (89 lb-in).

    Ford Taurus. Engine

  1. Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.

    Ford Taurus. Engine

  1. Install the engine wiring harness to the RH valve cover.
    • Position the wiring harness and attach the 9 wiring harness retainers to the RH valve cover and stud bolts.
    • Connect the CHT sensor wiring harness jumper electrical connector.
    • Connect the 3 fuel injector electrical connectors.
    • Connect and attach the RH CMS electrical connector.
    • Connect the 2 VCT oil control solenoid electrical connectors.

    Ford Taurus. Engine

  1. Install the PCV crankcase vent tube.

    Ford Taurus. Engine

  1. NOTE: Apply a small amount of dielectric grease to the inside of the ignition coil-on-plug boots before attaching to the spark plugs.

    Install the 3 RH coil-on-plugs and the 3 bolts.

    • Tighten to 7 Nm (62 lb-in).
    • Connect the 3 coil-on-plug electrical connectors.

    Ford Taurus. Engine

  1. Install the upper intake manifold. For additional information, refer to Upper Intake Manifold.

Crankshaft Pulley

Special Tool(s)

Ford Taurus. Engine

Material

Ford Taurus. Engine

Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02.
  1. Remove the accessory drive belt. For additional information, refer to Section 303-05.
  1. If equipped, release the 4 retainers and remove the underbody shield.

    Ford Taurus. Engine

  1. If equipped, remove the 10 retainers and the skid plate.

    Ford Taurus. Engine

  1. Remove the 4 accessory drive shield scrivets.

    Ford Taurus. Engine

  1. Remove the fender splash shield. For additional information, refer to Section 501-02.
  1. Remove the crankshaft pulley bolt and washer.
    • Discard the bolt.

    Ford Taurus. Engine

  1. Using the 3 Jaw Puller, remove the crankshaft pulley.

    Ford Taurus. Engine

Installation

  1. Lubricate the crankshaft front seal inner lip with clean engine oil.
  1. NOTE: Lubricate the outside diameter sealing surfaces with clean engine oil.

    Using the Front Cover Oil Seal Installer and Crankshaft Vibration Damper Replacer, install the crankshaft pulley.

    Ford Taurus. Engine

  1. Using the strap wrench, install the crankshaft pulley washer and new bolt and tighten in 4 stages.
    • Stage 1: Tighten to 120 Nm (89 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 50 Nm (37 lb-ft).
    • Stage 4: Tighten an additional 90 degrees.

    Ford Taurus. Engine

  1. Install the fender splash shield. For additional information, refer to Section 501-02.
  1. Install the 4 accessory drive shield scrivets.

    Ford Taurus. Engine

  1. Install the accessory drive belt. For additional information, refer to Section 303-05.
  1. If equipped, install the skid plate and the 10 retainers.
    • Tighten to 70 Nm (52 lb-ft).

    Ford Taurus. Engine

  1. If equipped, install the underbody shield and attach the 4 retainers.

    Ford Taurus. Engine

  1. After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure following the on-screen instructions.

Crankshaft Front Seal

Special Tool(s)

Ford Taurus. Engine

Material

Ford Taurus. Engine

Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02.
  1. Remove the crankshaft pulley. For additional information, refer to Crankshaft Pulley in this section.
  1. Using the Oil Seal Remover, remove and discard the crankshaft front seal.
    • Clean all sealing surfaces with metal surface prep.

    Ford Taurus. Engine

Installation

  1. NOTE: Apply clean engine oil to the crankshaft front seal bore in the engine front cover.

    Using the Front Crankshaft Seal Installer and Crankshaft Vibration Damper Installer, install a new crankshaft front seal.

    Ford Taurus. Engine

  1. Install the crankshaft pulley. For additional information, refer to Crankshaft Pulley in this section.

Flexplate

Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02.
  1. Remove the transaxle. For additional information, refer to Section 307-01A.
  1. Remove the 8 bolts and the flexplate.

    Ford Taurus. Engine

Installation

  1. NOTE: One of the 8 flexplate holes are offset so the flexplate can only be installed in one position.

    Install the flexplate and the 8 bolts.

    • Tighten in the sequence shown to 80 Nm (59 lb-ft).

    Ford Taurus. Engine

  1. Install the transaxle. For additional information, refer to Section 307-01A.
  1. After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure following the on-screen instructions.

Engine Front Cover

Special Tool(s)

Ford Taurus. Engine

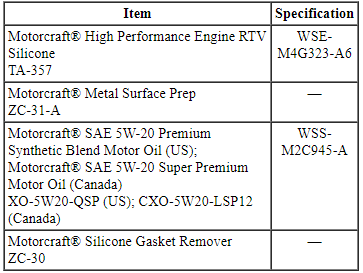

Material

Ford Taurus. Engine

Removal

NOTICE: During engine repair procedures, cleanliness is extremely important. Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02.
  1. Recover the A/C system. For additional information, refer to Section 412-00.
  1. Release the fuel system pressure. For additional information, refer to Section 310-00.
  1. Disconnect the battery ground cable. For additional information, refer to Section 414-01.
  1. Remove the accessory drive belt and the tensioner. For additional information, refer to Section 303-05.
  1. If equipped, release the 4 retainers and remove the underbody shield.

    Ford Taurus. Engine

  1. If equipped, remove the 10 retainers and the skid plate.

    Ford Taurus. Engine

  1. Drain the cooling system. For additional information, refer to Section 303-03.
  1. Using hose clamp pliers, pinch the lower degas bottle hose and remove the hose from the coolant inlet pipe.

    Ford Taurus. Engine

  1. Remove the degas bottle. For additional information, refer to Section 303-03.
  1. Remove the nut and disconnect the A/C tube.
    • Discard the O-ring seal and gasket seal.

    Ford Taurus. Engine

  1. Disconnect the fuel supply tube from the fuel rail supply tube. For additional information, refer to Section 310-00.
    • Remove the fuel tube-to-engine front cover bolt.

    Ford Taurus. Engine

  1. Remove the LH and RH valve covers. For additional information, refer to Valve Cover - LH and Valve Cover - RH in this section.
  1. Remove the generator nut and stud.
    • Loosen the bolt and position the generator aside.

    Ford Taurus. Engine

  1. Remove the RH front wheel and tire. For additional information, refer to Section 204-04.
  1. Remove the 3 lower rubber shield scrivets from the subframe.

    Ford Taurus. Engine

  1. Remove the RH inner fender splash shield. For additional information, refer to Section 501-02.
  1. Remove the crankshaft pulley bolt and washer.
    • Discard the bolt.

    Ford Taurus. Engine

  1. Using the 3 Jaw Puller, remove the crankshaft pulley.

    Ford Taurus. Engine

  1. Using the Oil Seal Remover, remove and discard the crankshaft front seal.

    Ford Taurus. Engine

  1. Remove the drain plug and drain the engine oil.
    • Install the drain plug and tighten to 27 Nm (20 lb-ft).

    Ford Taurus. Engine

  1. NOTICE: Failure to position the wood block and floor jack as illustrated can result in damage to the oil pan.

    Position a floor jack with a block of wood under the front of the oil pan.

    Ford Taurus. Engine

  1. Remove the 4 engine mount nuts.

    Ford Taurus. Engine

  1. Remove the 3 bolts and the engine mount.

    Ford Taurus. Engine

  1. NOTICE: Do not allow the A/C compressor to contact the subframe. Failure to follow this direction may result in damage to the A/C compressor.

    Using the floor jack, lower the engine to access the lower engine front cover bolt.

    • Remove the lower M10 engine front cover bolt.

    Ford Taurus. Engine

  1. Using the floor jack, raise the engine.
  1. Remove the 2 M10 engine front cover bolts.

    Ford Taurus. Engine

  1. Remove the 22 M8 engine front cover bolts.

    Ford Taurus. Engine

  1. Remove the M6 engine front cover bolt.

    Ford Taurus. Engine

  1. Using a suitable pry tool, locate the 5 pry pads shown and pry the engine front cover loose and remove.

    Ford Taurus. Engine

Installation

  1. NOTICE: Only use a 3M Roloc Bristle Disk (2-in white, part number 07528) to clean the engine front cover. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean front cover.

    Clean the engine front cover using a 3M Roloc Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15,000 rpm.

    • Thoroughly wash the engine front cover to remove any foreign material, including any abrasive particles created during the cleaning process.
  1. NOTICE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.

    NOTICE: Do not use wire brushes, power abrasive discs or 3M Roloc Bristle Disk (2-in white part number 07528) to clean the sealing surfaces of engine block, cylinder heads, and oil pan. These tools can cause contamination that will cause premature engine failure. Remove all traces of the gasket.

    Clean the sealing surfaces of the cylinder heads, the cylinder block and the oil pan in the following sequence.
    1. Remove any large deposits of silicone or gasket material.
    1. Apply silicone gasket remover and allow to set for several minutes.
    1. Remove the silicone gasket remover. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.
    1. Apply metal surface prep to remove any remaining traces of oil or coolant and to prepare the surfaces to bond. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.
    1. Make sure the 2 locating dowel pins are seated correctly in the cylinder block.
  1. Install the Alignment Pins.

    Ford Taurus. Engine

  1. NOTICE: Failure to use Motorcraft High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

    NOTE: The engine front cover and bolts 7, 8, 15, 17, 18, 21 and 22 must be installed within 4 minutes of the initial sealant application. The remainder of the engine front cover bolts must be installed and tightened within 35 minutes of the initial sealant application. If the time limits are exceeded, the sealant must be removed, the sealing area cleaned and sealant reapplied. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

    Apply a 3.0 mm (0.11 in) bead of Motorcraft High Performance Engine RTV Silicone to the engine front cover sealing surfaces including the 4 inner bolt bosses.
    • Apply a 5.5 mm (0.21 in) bead of Motorcraft High Performance Engine RTV Silicone to the oil pan-to-cylinder block joint and the cylinder head-to-cylinder block joint areas of the engine front cover in 5 places as indicated.

    Ford Taurus. Engine

  1. NOTE: Make sure the 2 locating dowel pins are seated correctly in the cylinder block.

    Install the engine front cover and bolts 7, 8, 15, 17, 18, 21 and 22.

    • Tighten in sequence to 3 Nm (27 lb-in).

    Ford Taurus. Engine

  1. Remove the Alignment Pins.

    Ford Taurus. Engine

  1. NOTE: Do not tighten the bolt at this time.

    Install the M6 engine front cover bolt.

    Ford Taurus. Engine

  1. NOTE: Do not tighten the bolts at this time.

    Install the 2 upper M10 engine front cover bolts.

    Ford Taurus. Engine

  1. NOTICE: Do not allow the A/C compressor to contact the subframe. Failure to follow this direction may result in damage to the A/C compressor.

    NOTE: Do not tighten the bolt at this time.

    Using the floor jack, lower the engine to allow installation of the lower M10 engine front cover bolt.
    • Install the lower M10 engine front cover bolt.

    Ford Taurus. Engine

  1. NOTICE: Do not expose the Motorcraft High Performance Engine RTV Silicone to engine oil for at least 90 minutes after installing the engine front cover. Failure to follow this instruction may cause oil leakage.

    Install the remaining engine front cover bolts. Tighten all of the engine front cover bolts in the sequence shown in 7 stages:

    • Stage 1: Tighten bolts 1 thru 22 to 10 Nm (89 lb-in).
    • Stage 2: Tighten bolts 23, 24 and 25 to 15 Nm (133 lb-in).
    • Stage 3: Tighten bolt 26 to 10 Nm (89 lb-in).
    • Stage 4: Loosen bolt 26 one full turn.
    • Stage 5: Tighten bolts 23, 24 and 25 to 30 Nm (22 lb-ft) plus an additional 90 degrees.
    • Stage 6: Tighten bolts 1 thru 22 to 20 Nm (177 lb-in) plus an additional 45 degrees.
    • Stage 7: Tighten bolt 26 to 10 Nm (89 lb-in) plus an additional 45 degrees.

    Ford Taurus. Engine

  1. Use the floor jack to raise the engine to the installed position and install the engine mount and the 3 bolts.
    • Tighten to 90 Nm (66 lb-ft).

    Ford Taurus. Engine

  1. Install the 4 engine mount nuts.
    • Tighten to 63 Nm (46 lb-ft).

    Ford Taurus. Engine

  1. NOTE: Apply clean engine oil to the crankshaft front seal bore in the engine front cover.

    Using the Front Crankshaft Seal Installer and Crankshaft Vibration Damper Installer, install a new crankshaft front seal.

    Ford Taurus. Engine

  1. NOTE: Lubricate the outside diameter sealing surfaces and crankshaft front seal inner lip with clean engine oil.

    Using the Front Cover Oil Seal Installer and Crankshaft Vibration Damper Replacer, install the crankshaft pulley.

    Ford Taurus. Engine

  1. Using the strap wrench, install the crankshaft pulley washer and new bolt and tighten in 4 stages.
    • Stage 1: Tighten to 120 Nm (89 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 50 Nm (37 lb-ft).
    • Stage 4: Tighten an additional 90 degrees.

    Ford Taurus. Engine

  1. Install the RH inner fender splash shield. For additional information, refer to Section 501-02.
  1. Install the 3 accessory drive shield scrivets to the subframe.

    Ford Taurus. Engine

  1. Install the RH front wheel and tire. For additional information, refer to Section 204-04.
  1. Position the generator and install the stud and nut.
    • Tighten the stud to 8 Nm (71 lb-in).
    • Tighten the nut to 47 Nm (35 lb-ft).
    • Tighten the bolt to 47 Nm (35 lb-ft).

    Ford Taurus. Engine

  1. Install the LH and RH valve covers. For additional information, refer to Valve Cover - LH and Valve Cover - RH in this section.
  1. Install the fuel tube-to-engine front cover bolt.
    • Tighten the bolt to 10 Nm (89 lb-in).
    • Connect the fuel supply tube to the fuel rail supply tube. For additional information, refer to Section 310-00.

    Ford Taurus. Engine

  1. Using a new O-ring seal, connect the A/C pressure tube fitting and install the nut.
    • Tighten to 8 Nm (71 lb-in).

    Ford Taurus. Engine

  1. Install the degas bottle. For additional information, refer to Section 303-03.
  1. Connect the coolant hose to the coolant inlet pipe.
    • Remove the hose clamp pliers.

    Ford Taurus. Engine

  1. Install the accessory drive belt and the tensioner. For additional information, refer to Section 303-05.
  1. NOTICE: Do not expose the Motorcraft High Performance Engine RTV Silicone to engine oil for at least 90 minutes after installing the engine front cover. Failure to follow this instruction may cause oil leakage.

    Fill the engine with clean engine oil.

  1. Connect the battery ground cable. For additional information, refer to Section 414-01.
  1. Fill the cooling system. For additional information, refer to Section 303-03.
  1. If equipped, install the skid plate and the 10 retainers.
    • Tighten to 70 Nm (52 lb-ft).

    Ford Taurus. Engine

  1. If equipped, install the underbody shield and attach the 4 retainers.

    Ford Taurus. Engine

  1. Evacuate and recharge the A/C system. For additional information, refer to Section 412-00.
  1. After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure following the on-screen instructions.

Timing Drive Components

Special Tool(s)

Ford Taurus. Engine

Removal

NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.

All engines

  1. Remove the engine front cover. For additional information, refer to Engine Front Cover in this section.
  1. Rotate the crankshaft clockwise and align the timing marks on the intake Variable Camshaft Timing (VCT) assemblies as shown.

    Ford Taurus. Engine

  1. Remove the 3 bolts and the LH valve train oil tube.

    Ford Taurus. Engine

  1. NOTE: The Camshaft Holding Tool will hold the camshafts in the Top Dead Center (TDC) position.

    Install the Camshaft Holding Tool onto the flats of the LH camshafts.

    Ford Taurus. Engine

  1. Remove the 3 bolts and the RH valve train oil tube.

    Ford Taurus. Engine

  1. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install the Camshaft Holding Tool onto the flats of the RH camshafts.

    Ford Taurus. Engine

NOTE: The following 3 steps are for primary timing chains that the colored links are not visible.

  1. Mark the timing chain link that aligns with the timing mark on the LH intake VCT assembly as shown.

    Ford Taurus. Engine

  1. Mark the timing chain link that aligns with the timing mark on the RH intake VCT assembly as shown.

    Ford Taurus. Engine

  1. NOTE: The crankshaft sprocket timing mark should be between the 2 colored links.

    Mark the 2 timing chain links that align with the timing mark on the crankshaft sprocket as shown.

    Ford Taurus. Engine

  1. Remove the 2 bolts and the primary timing chain tensioner.

    Ford Taurus. Engine

  1. Remove the primary timing chain tensioner arm.

    Ford Taurus. Engine

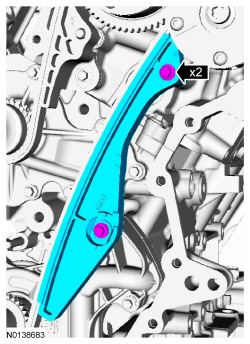

  1. Remove the 2 bolts and the lower LH primary timing chain guide.

    Ford Taurus. Engine

  1. NOTE: Removal of the VCT oil control solenoid will aid in the removal of the primary timing chain.

    NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.

    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Remove the bolt and the LH intake VCT oil control solenoid.

    Ford Taurus. Engine

  1. NOTE: Removal of the VCT oil control solenoid will aid in the removal of the primary timing chain.

    NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.

    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Remove the bolt and the RH intake VCT oil control solenoid.

    Ford Taurus. Engine

  1. Remove the primary timing chain.

    Ford Taurus. Engine

  1. Remove the crankshaft timing chain sprocket.

    Ford Taurus. Engine

  1. NOTICE: Do not use power tools to remove the bolt or damage to the LH primary timing chain guide may occur.

    Remove the bolt and the upper LH primary timing chain guide.

    Ford Taurus. Engine

  1. NOTE: The 2 VCT oil control solenoids are removed for clarity.

    NOTE: The Secondary Chain Hold Down is inserted through a hole in the top of the mega cap.

    Compress the LH secondary timing chain tensioner and install the Secondary Chain Hold Down in the hole on the rear of the secondary timing chain tensioner guide and let it hold against the mega cap to retain the tensioner in the collapsed position.

    Ford Taurus. Engine

  1. Remove and discard the 2 LH VCT assembly bolts.

    Ford Taurus. Engine

  1. Remove the 2 LH VCT assemblies and secondary timing chain.

    Ford Taurus. Engine

  1. NOTE: The 2 VCT oil control solenoids are removed for clarity.

    NOTE: The Secondary Chain Hold Down is inserted through a hole in the top of the mega cap.

    Compress the RH secondary timing chain tensioner and install the Secondary Chain Hold Down in the hole on the rear of the secondary timing chain tensioner guide and let it hold against the mega cap to retain the tensioner in the collapsed position.

    Ford Taurus. Engine

  1. Remove and discard the 2 RH VCT assembly bolts.

    Ford Taurus. Engine

  1. Remove the 2 RH VCT assemblies and secondary timing chain.

    Ford Taurus. Engine

  1. NOTICE: Do not use power tools to remove the bolt or damage to the RH primary timing chain guide may occur.

    Remove the bolt and the RH primary timing chain guide.

    Ford Taurus. Engine

Engines with secondary timing chain tensioner removed

NOTICE: The following steps are only for the replacement of the secondary timing chain tensioners. Do not reuse the secondary timing chain tensioners if removed, or damage to the engine may occur.

  1. NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.

    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Remove the LH exhaust VCT oil control solenoid.

    Ford Taurus. Engine

  1. Remove the LH secondary timing chain tensioner shoe.

    Ford Taurus. Engine

  1. Remove the LH secondary timing chain tensioner by pushing up from the bottom and remove.

    Ford Taurus. Engine

  1. NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.

    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Remove the RH exhaust VCT oil control solenoid.

    Ford Taurus. Engine

  1. Remove the RH secondary timing chain tensioner shoe.

    Ford Taurus. Engine

  1. Remove the RH secondary timing chain tensioner by pushing up from the bottom and remove.

    Ford Taurus. Engine

Installation

All engines

  1. Install the RH primary timing chain guide and the bolt.
    • Tighten to 10 Nm (89 lb-in).

    Ford Taurus. Engine

Engines with secondary timing chain tensioner removed

NOTICE: The following steps are only for the replacement of the secondary timing chain tensioners. Do not reuse the secondary timing chain tensioners if removed or damage to the engine may occur.

  1. NOTE: Apply clean engine oil to the secondary timing chain tensioner O-ring seals and mega cap bore.

    NOTE: Do not remove the secondary timing chain tensioner shipping clip, until instructed to do so.

    Install the RH secondary timing chain tensioner by pushing it down all the way until a snap is heard and the tensioner is seated all the way down the mega cap bore.

    Ford Taurus. Engine

  1. Install the RH secondary timing chain tensioner shoe.

    Ford Taurus. Engine

  1. Remove and discard the RH secondary timing chain tensioner shipping clip.

    Ford Taurus. Engine

  1. Assemble the RH Variable Camshaft Timing (VCT) assembly, the RH exhaust camshaft sprocket and the RH secondary timing chain.
    • Align the colored links with the timing marks.

    Ford Taurus. Engine

  1. NOTE: It may be necessary to rotate the camshafts slightly, to install the RH secondary timing assembly.

    Position the 2 RH VCT assemblies and secondary timing chain onto the camshafts by aligning the holes in the VCT assemblies with the dowel pins in the camshafts.

    Ford Taurus. Engine

  1. Install the 2 new RH VCT bolts and tighten in 4 stages.
    • Stage 1: Tighten to 40 Nm (30 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 25 Nm (18 lb-ft).
    • Stage 4: Tighten an additional 180 degrees.

    Ford Taurus. Engine

  1. Activate the RH secondary timing chain tensioner by pressing down on the secondary tensioner top shoe until it bottoms out, let go of the tensioner and it will spring up putting tension on the chain.

    Ford Taurus. Engine

  1. NOTICE: Do not use excessive force when installing the Variable Camshaft Timing (VCT) oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.

    NOTE: A slight twisting motion will aid in the installation of the VCT oil control solenoid.

    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Install the RH exhaust VCT oil control solenoid.
    • Tighten to 8 Nm (71 lb-in) then an additional 20 degrees.

    Ford Taurus. Engine

  1. NOTE: Apply clean engine oil to the secondary timing chain tensioner O-ring seals and mega cap bore.

    NOTE: Do not remove the secondary timing chain tensioner shipping clip, until instructed to do so.

    Install the LH secondary timing chain tensioner by pushing it down all the way until a snap is heard and the tensioner is seated all the way down the mega cap bore.

    Ford Taurus. Engine

  1. Install the LH secondary timing chain tensioner shoe.

    Ford Taurus. Engine

  1. Remove and discard the LH secondary timing chain tensioner shipping clip.

    Ford Taurus. Engine

  1. Assemble the 2 LH VCT assemblies and the LH secondary timing chain.
    • Align the colored links with the timing marks.

    Ford Taurus. Engine

  1. NOTE: It may be necessary to rotate the camshafts slightly, to install the LH secondary timing assembly.

    Position the 2 LH VCT assemblies and secondary timing chain onto the camshafts by aligning the holes in the VCT assemblies with the dowel pins in the camshafts.

    Ford Taurus. Engine

  1. Install the 2 new LH VCT bolts and tighten in 4 stages.
    • Stage 1: Tighten to 40 Nm (30 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 25 Nm (18 lb-ft).
    • Stage 4: Tighten an additional 180 degrees.

    Ford Taurus. Engine

  1. Activate the LH secondary timing chain tensioner by pressing down on the secondary tensioner top shoe until it bottoms out, let go of the tensioner and it will spring up putting tension on the chain.

    Ford Taurus. Engine

  1. NOTICE: Do not use excessive force when installing the Variable Camshaft Timing (VCT) oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.

    NOTE: A slight twisting motion will aid in the installation of the VCT oil control solenoid.

    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Install the LH exhaust VCT oil control solenoid.
    • Tighten to 8 Nm (71 lb-in) then an additional 20 degrees.

    Ford Taurus. Engine

Engines with secondary timing chain tensioner not removed

  1. Compress the RH secondary timing chain tensioner and install the Secondary Chain Hold Down to retain the tensioner in the collapsed position.

    Ford Taurus. Engine

  1. Assemble the RH VCT assembly, the RH exhaust camshaft sprocket and the RH secondary timing chain.
    • Align the colored links with the timing marks.

    Ford Taurus. Engine

  1. NOTE: It may be necessary to rotate the camshafts slightly, to install the RH secondary timing assembly.

    Position the 2 RH VCT assemblies and secondary timing chain onto the camshafts by aligning the holes in the VCT assemblies with the dowel pins in the camshafts.

    Ford Taurus. Engine

  1. Install the 2 new RH VCT bolts and tighten in 4 stages.
    • Stage 1: Tighten to 40 Nm (30 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 25 Nm (18 lb-ft).
    • Stage 4: Tighten an additional 180 degrees.

    Ford Taurus. Engine

  1. NOTE: The 2 VCT oil control solenoids are removed for clarity.

    Compress the RH secondary timing chain tensioner and remove the Secondary Chain Hold Down.

    • Make sure the secondary timing chain is centered on the timing chain tensioner guides.

    Ford Taurus. Engine

  1. Compress the LH secondary timing chain tensioner and install the Secondary Chain Hold Down to retain the tensioner in the collapsed position.

    Ford Taurus. Engine

  1. Assemble the 2 LH VCT assemblies and the LH secondary timing chain.
    • Align the colored links with the timing marks.

    Ford Taurus. Engine

  1. NOTE: It may be necessary to rotate the camshafts slightly, to install the LH secondary timing assembly.

    Position the 2 LH VCT assemblies and secondary timing chain onto the camshafts by aligning the holes in the VCT assemblies with the dowel pins in the camshafts.

    Ford Taurus. Engine

  1. Install the 2 new LH VCT bolts and tighten in 4 stages.
    • Stage 1: Tighten to 40 Nm (30 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 25 Nm (18 lb-ft).
    • Stage 4: Tighten an additional 180 degrees.

    Ford Taurus. Engine

  1. NOTE: The 2 VCT oil control solenoids are removed for clarity.

    Compress the LH secondary timing chain tensioner and remove the Secondary Chain Hold Down.

    • Make sure the secondary timing chain is centered on the timing chain tensioner guides.

    Ford Taurus. Engine

All engines

  1. Install the upper LH primary timing chain guide and the bolt.
    • Tighten to 10 Nm (89 lb-in).

    Ford Taurus. Engine

  1. Install the crankshaft timing chain sprocket with timing dot mark out.

    Ford Taurus. Engine

  1. NOTE: It may be necessary to rotate the camshafts slightly, to align the timing marks.

    Install the primary timing chain with the colored links aligned with the timing marks on the VCT assemblies and the crankshaft sprocket.

    Ford Taurus. Engine

  1. Install the lower LH primary timing chain guide and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).

    Ford Taurus. Engine

  1. Install the primary timing chain tensioner arm.

    Ford Taurus. Engine

  1. Reset the primary timing chain tensioner.
    • Release the ratchet detent.
    • Using a soft-jawed vise, compress the ratchet plunger.
    • Align the hole in the ratchet plunger with the hole in the tensioner housing.
    • Install a suitable lockpin.

    Ford Taurus. Engine

  1. NOTE: It may be necessary to rotate the camshafts slightly to remove slack from the timing chain to install the tensioner.

    Install the primary tensioner and the 2 bolts.

    • Tighten to 10 Nm (89 lb-in).
    • Remove the lockpin.

    Ford Taurus. Engine

  1. As a post-check, verify correct alignment of all timing marks.
    • There are 48 links in between the RH intake VCT assembly colored link (1) and the LH intake VCT assembly colored link (2).
    • There are 35 links in between LH intake VCT assembly colored link (2) and the 2 crankshaft sprocket links (3).

    Ford Taurus. Engine

  1. NOTICE: Do not use excessive force when installing the Variable Camshaft Timing (VCT) oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.

    NOTE: A slight twisting motion will aid in the installation of the VCT oil control solenoid.

    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Install the LH intake VCT oil control solenoid and the bolt.
    • Tighten to 8 Nm (71 lb-in) then an additional 20 degrees.

    Ford Taurus. Engine

  1. NOTICE: Do not use excessive force when installing the Variable Camshaft Timing (VCT) oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.

    NOTE: A slight twisting motion will aid in the installation of the VCT oil control solenoid.

    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Install the RH intake VCT oil control solenoid and the bolt.
    • Tighten to 8 Nm (71 lb-in) then an additional 20 degrees.

    Ford Taurus. Engine

  1. Remove the RH Camshaft Holding Tool.

    Ford Taurus. Engine

  1. Install the RH valve train oil tube and the 3 bolts and tighten in 2 stages.
    • Stage 1: Tighten to 8 Nm (71 lb-in).
    • Stage 2: Tighten an additional 45 degrees.

    Ford Taurus. Engine

  1. Remove the LH Camshaft Holding Tool.

    Ford Taurus. Engine

  1. Install the LH valve train oil tube and the 3 bolts and tighten in 2 stages.
    • Stage 1: Tighten to 8 Nm (71 lb-in).
    • Stage 2: Tighten an additional 45 degrees.

    Ford Taurus. Engine

  1. Install the engine front cover. For additional information, refer to Engine Front Cover in this section.

Oil Filter Adapter

Removal

All engines

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02.
  1. If equipped, release the 4 retainers and remove the underbody shield.

    Ford Taurus. Engine

  1. If equipped, remove the 10 retainers and the skid plate.

    Ford Taurus. Engine

Engines with oil cooler

  1. Remove the engine oil cooler. For additional information, refer to Oil Cooler in this section.

All engines

  1. Remove and discard the engine oil filter.

    Ford Taurus. Engine

  1. NOTE: Oil filter adapter with oil cooler shown, oil filter adapter without oil cooler similar.

    Remove the 3 bolts and the oil filter adapter.

    • Discard the gasket.
    • Clean and inspect all sealing surfaces.

    Ford Taurus. Engine

Installation

All engines

  1. Using a new gasket, install the oil filter adapter and the 3 bolts.
    • Tighten to 10 Nm (89 lb-in) plus an additional 45 degrees.

    Ford Taurus. Engine

  1. NOTE: Do not lubricate the engine oil filter seal.

    Install a new the engine oil filter.

    • Tighten to 5 Nm (44 lb-in) and then rotate an additional 180 degrees.

    Ford Taurus. Engine

Engines with oil cooler

  1. Install the engine oil cooler. For additional information, refer to Oil Cooler in this section.

All engines

  1. If equipped, install the skid plate and the 10 retainers.
    • Tighten to 70 Nm (52 lb-ft).

    Ford Taurus. Engine

  1. If equipped, install the underbody shield and attach the 4 retainers.

    Ford Taurus. Engine

Oil Cooler

Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02.
  1. If equipped, release the 4 retainers and remove the underbody shield.

    Ford Taurus. Engine

  1. If equipped, remove the 10 retainers and the skid plate.

    Ford Taurus. Engine

  1. Using hose clamp pliers, clamp the 2 oil cooler coolant hoses and remove the 2 coolant hoses from the oil cooler.

    Ford Taurus. Engine

  1. NOTICE: If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure. To diagnose mechanical concerns, refer to Section 303-00.

    Remove the 6 bolts and the oil cooler.

    • Discard the gaskets.
    • Clean and inspect all sealing surfaces.

    Ford Taurus. Engine

Installation

  1. Using a new gaskets, install the oil cooler and the 6 bolts.
    • Tighten in the sequence shown to 10 Nm (89 lb-in).

    Ford Taurus. Engine

  1. Install the 2 coolant hoses to the oil cooler.
    • Remove the 2 hose clamp pliers.

    Ford Taurus. Engine

  1. If equipped, install the skid plate and the 10 retainers.
    • Tighten to 70 Nm (52 lb-ft).

    Ford Taurus. Engine

  1. If equipped, install the underbody shield and attach the 4 retainers.

    Ford Taurus. Engine

Engine Oil Pressure (EOP) Switch

Material

Ford Taurus. Engine

Removal and Installation

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02.
  1. If equipped, release the 4 retainers and remove the underbody shield.

    Ford Taurus. Engine

  1. If equipped, remove the 10 retainers and the skid plate.
    • To install, tighten to 70 Nm (52 lb-ft).

    Ford Taurus. Engine

  1. Disconnect the Engine Oil Pressure (EOP) switch electrical connector.

    Ford Taurus. Engine

  1. Remove the EOP switch.
    • To install, tighten to 14 Nm (124 lb-in) plus an additional 180 degrees.

    Ford Taurus. Engine

  1. To install, reverse the removal procedure.
    • Apply thread sealant with PTFE to the EOP switch threads prior to installation.

Engine Mount

Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02.
  1. If equipped, release the 4 retainers and remove the underbody shield.

    Ford Taurus. Engine

  1. If equipped, remove the 10 retainers and the skid plate.

    Ford Taurus. Engine

  1. NOTICE: Failure to position the wood block and floor jack as illustrated can result in damage to the oil pan.

    Position a floor jack with a block of wood under the front of the oil pan.

    Ford Taurus. Engine

  1. Detach the A/C line retainer from the shock tower bracket.

    Ford Taurus. Engine

  1. Using hose clamp pliers, pinch the lower degas bottle hose and remove the hose from the coolant inlet pipe.

    Ford Taurus. Engine

  1. Remove the degas bottle. For additional information, refer to Section 303-03.
  1. Remove the 4 engine mount nuts.

    Ford Taurus. Engine

  1. Remove the 3 bolts and the engine mount.

    Ford Taurus. Engine

Installation

  1. Install the engine mount and the 3 bolts.
    • Tighten to 90 Nm (66 lb-ft).

    Ford Taurus. Engine

  1. Install the 4 engine mount nuts.
    • Tighten to 63 Nm (46 lb-ft).

    Ford Taurus. Engine

  1. Install the degas bottle. For additional information, refer to Section 303-03.
  1. Connect the coolant hose to the coolant inlet pipe.
    • Remove the hose clamp pliers.

    Ford Taurus. Engine

  1. Attach the A/C line retainer to the shock tower bracket.

    Ford Taurus. Engine

  1. If equipped, install the skid plate and the 10 retainers.
    • Tighten to 70 Nm (52 lb-ft).

    Ford Taurus. Engine

  1. If equipped, install the underbody shield and attach the 4 retainers.

    Ford Taurus. Engine

Oil Pan

Material

Ford Taurus. Engine

Removal

NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02.
  1. Remove the Air Cleaner (ACL) outlet pipe. For additional information, refer to Section 303-12.
  1. Remove the battery tray. For additional information, refer to Section 414-01.
  1. Remove the oil level indicator.

    Ford Taurus. Engine

  1. Detach the wiring harness retainer from the starter stud bolt.
    • Remove the starter stud bolt.

    Ford Taurus. Engine

  1. Loosen the 3 upper bellhousing-to-engine bolts 5 mm (0.19 in).

    Ford Taurus. Engine

  1. If equipped, release the 4 retainers and remove the underbody shield.

    Ford Taurus. Engine

  1. If equipped, remove the 10 retainers and the skid plate.

    Ford Taurus. Engine

  1. Remove the drain plug and drain the engine oil.
    • Install the drain plug and tighten to 27 Nm (20 lb-ft).

    Ford Taurus. Engine

  1. Remove and discard the engine oil filter.

    Ford Taurus. Engine

  1. Remove the exhaust Y-pipe. For additional information, refer to Section 309-00.
  1. Remove the transaxle support insulator - anti-roll. For additional information, refer to Section 307-01A.

All-Wheel Drive (AWD) vehicles

  1. Remove the catalytic converter - RH manifold. For additional information, refer to Section 309-00.
  1. Remove the 5 Power Transfer Unit (PTU) support bracket bolts and the PTU support bracket.

    Ford Taurus. Engine

All vehicles

  1. Remove the A/C compressor nut.
    • Remove the stud from the oil pan boss (stud will remain in compressor housing).

    Ford Taurus. Engine

  1. Loosen the 3 LH bellhousing-to-engine bolts 5 mm (0.19 in).

    Ford Taurus. Engine

  1. NOTE: All-Wheel Drive (AWD) vehicle shown, Front Wheel Drive (FWD) similar. Parts removed from graphic for clarity.

    Loosen the RH engine-to-bellhousing bolt 5 mm (0.19 in).

    Ford Taurus. Engine

  1. Remove the 2 fasteners and the inspection cover.

    Ford Taurus. Engine

  1. Remove the 2 LH catalytic converter bracket nuts.

    Ford Taurus. Engine

  1. Remove the 4 oil pan-to-bellhousing bolts and the LH catalytic converter bracket.

    Ford Taurus. Engine

  1. Separate the engine and transaxle 5 mm (0.19 in).

    Ford Taurus. Engine

  1. Remove the 4 lower engine front cover bolts.

    Ford Taurus. Engine

  1. Remove the 16 oil pan bolts.

    Ford Taurus. Engine

  1. Using a suitable pry tool, locate the pry pads and pry the oil pan loose and remove.

    Ford Taurus. Engine

  1. NOTICE: Only use a 3M Roloc Bristle Disk (2-in white, part number 07528) to clean the oil pan. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean. These tools cause scratches and gouges that make leak paths.

    Clean the engine oil pan using a 3M Roloc Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15,000 rpm.

    • Thoroughly wash the oil pan to remove any foreign material, including any abrasive particles created during the cleaning process.
  1. NOTICE: Do not use wire brushes, power abrasive discs or 3M Roloc Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

    Clean the sealing surfaces of the cylinder block and engine front cover in the following sequence.

    1. Remove any large deposits of silicone or gasket material.
    1. Apply silicone gasket remover and allow to set for several minutes.
    1. Remove the silicone gasket remover. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.
    1. Apply metal surface prep to remove any remaining traces of oil and to prepare the surfaces to bond. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.

Installation

All vehicles

  1. Apply a 5.5 mm (0.21 in) bead of Motorcraft High Performance Engine RTV Silicone to the 2 engine front cover-to-cylinder block joint areas on the sealing surface of the oil pan.

    Ford Taurus. Engine

  1. NOTICE: Failure to use Motorcraft High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

    NOTE: The oil pan and the 4 specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

    Apply a 3 mm (0.11 in) bead of Motorcraft High Performance Engine RTV Silicone to the sealing surface of the oil pan-to-engine block and to the oil pan-to-engine front cover mating surface.

    Ford Taurus. Engine

  1. Apply a 5.5 mm (0.21 in) bead of Motorcraft High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.

    Ford Taurus. Engine

  1. NOTE: The oil pan and the 4 specified bolts must be installed within 4 minutes of the start of sealant application.

    NOTE: Keep the oil pan as close as possible to the transmission while installing, then slide forward towards the engine front cover to prevent wiping off of the sealant.

    Install the oil pan and bolts 10, 11, 13 and 14 finger tight.

    Ford Taurus. Engine

  1. Draw the bellhousing up to the engine by tightening the LH bellhousing-to-engine bolt.
    • Do not torque at this time.

    Ford Taurus. Engine

  1. NOTE: All-Wheel Drive (AWD) vehicle shown, Front Wheel Drive (FWD) similar. Parts removed from graphic for clarity.

    Draw the bellhousing up to the engine by tightening the RH engine-to-bellhousing bolt.

    • Do not torque at this time.

    Ford Taurus. Engine

  1. Install the LH catalytic converter bracket and the 4 oil pan-to-bellhousing bolts.
    • Do not torque at this time.

    Ford Taurus. Engine

  1. Install the 2 LH catalytic converter bracket nuts.
    • Tighten to 30 Nm (22 lb-ft).

    Ford Taurus. Engine

  1. Install the A/C compressor stud and nut.
    • Tighten the stud to 9 Nm (80 lb-in).
    • Hand tighten the nut.

    Ford Taurus. Engine

  1. Tighten bolts 10, 11, 13 and 14 in the sequence shown to 3 Nm (27 lb-in).

    Ford Taurus. Engine

  1. Install the 4 lower engine front cover bolts.
    • Do not torque at this time.

    Ford Taurus. Engine

  1. Install the remaining oil pan bolts and tighten in the sequence shown.
    • Tighten bolts 1 through 9 and 11 through 14 to 20 Nm (177 lb-in), then rotate an additional 45 degrees.
    • Tighten bolts 15 and 16 to 10 Nm (89 lb-in), then rotate an additional 45 degrees.
    • Tighten bolt 10 to 20 Nm (177 lb-in), then rotate an additional 90 degrees.

    Ford Taurus. Engine

  1. Tighten the 4 lower engine front cover bolts to 24 Nm (18 lb-ft).

    Ford Taurus. Engine

  1. Tighten the A/C compressor nut to 25 Nm (18 lb-ft).

    Ford Taurus. Engine

  1. Tighten the 4 oil pan-to-bellhousing bolts to 48 Nm (35 lb-ft).

    Ford Taurus. Engine

  1. NOTE: All-Wheel Drive (AWD) vehicle shown, Front Wheel Drive (FWD) similar. Parts removed from graphic for clarity.

    Tighten the RH engine-to-bellhousing bolt to 48 Nm (35 lb-ft).

    Ford Taurus. Engine

  1. Tighten the 3 LH bellhousing-to-engine bolts to 48 Nm (35 lb-ft).

    Ford Taurus. Engine

  1. Install the inspection cover and the 2 fasteners.

    Ford Taurus. Engine

All-Wheel Drive (AWD) vehicles

  1. Install the Power Transfer Unit (PTU) support bracket and the 5 bolts.
    • Tighten to 70 Nm (52 lb-ft).

    Ford Taurus. Engine

  1. Install the catalytic converter - RH manifold. For additional information, refer to Section 309-00.

All vehicles

  1. Tighten the 3 upper bellhousing-to-engine bolts to 48 Nm (35 lb-ft).

    Ford Taurus. Engine

  1. NOTE: Do not lubricate the engine oil filter gasket.

    Install a new engine oil filter.

    • Tighten to 5 Nm (44 lb-in) and then rotate an additional 180 degrees.

    Ford Taurus. Engine

  1. Install the transaxle support insulator - anti-roll. For additional information, refer to Section 307-01A.
  1. Install the exhaust Y-pipe. For additional information, refer to Section 309-00.
  1. If equipped, install the skid plate and the 10 retainers.
    • Tighten to 70 Nm (52 lb-ft).

    Ford Taurus. Engine

  1. If equipped, install the underbody shield and attach the 4 retainers.

    Ford Taurus. Engine

  1. Install the starter stud bolt.
    • Tighten to 27 Nm (20 lb-in).
    • Attach the wiring harness retainer to the starter stud bolt.

    Ford Taurus. Engine

  1. Install the oil level indicator.

    Ford Taurus. Engine

  1. Install the battery tray. For additional information, refer to Section 414-01.
  1. Install the Air Cleaner (ACL) outlet pipe. For additional information, refer to Section 303-12.
  1. NOTICE: Do not expose the Motorcraft High Performance Engine RTV Silicone to engine oil for at least 90 minutes after installing the oil pan. Failure to follow these instructions may cause engine oil leakage.

    Fill the engine with clean engine oil.

Oil Pump Screen and Pickup Tube

Removal

NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.

  1. Remove the oil pan. For additional information, refer to Oil Pan in this section.
  1. Remove the 2 bolts and the oil pump screen and pickup tube.
    • Discard the O-ring seal.

    Ford Taurus. Engine

Installation

  1. Using a new O-ring seal, install the oil pump screen and pickup tube and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).

    Ford Taurus. Engine

  1. Install the oil pan. For additional information, refer to Oil Pan in this section.

Crankshaft Rear Seal with Retainer Plate

Material

Ford Taurus. Engine

Removal

NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02.
  1. Remove the flexplate. For additional information, refer to Flexplate in this section.
  1. Remove the crankshaft sensor ring.

    Ford Taurus. Engine

  1. Disconnect the Crankshaft Position (CKP) sensor electrical connector.

    Ford Taurus. Engine

  1. Remove the bolt and the CKP sensor.

    Ford Taurus. Engine

  1. Remove the 2 oil pan-to-crankshaft rear seal retainer bolts.

    Ford Taurus. Engine

  1. Remove the 8 bolts and the crankshaft rear seal retainer plate.
    • Discard the plate and seal assembly.

    Ford Taurus. Engine

  1. NOTICE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.

    NOTICE: Do not use wire brushes, power abrasive discs or 3M Roloc Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that will cause premature engine failure. Remove all traces of the gasket.

    Clean the sealing surfaces of the cylinder block and oil pan flange in the following sequence.
    1. Remove any large deposits of silicone or gasket material.
    1. Apply silicone gasket remover and allow to set for several minutes.
    1. Remove the silicone gasket remover. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.
    1. Apply metal surface prep to remove any remaining traces of oil or coolant and to prepare the surfaces to bond. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.

Installation

  1. NOTICE: Failure to use Motorcraft High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

    NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 10 minutes of sealant application.

    Apply 5 mm (0.196 in) beads of Motorcraft High Performance Engine RTV Silicone to the 2 cylinder block/oil pan joints.

    Ford Taurus. Engine

  1. NOTICE: Failure to use Motorcraft High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

    NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 10 minutes of sealant application.

    NOTE: The stamped steel crankshaft rear seal retainer plate comes with the crankshaft rear seal.

    Apply a 3 mm (0.11 in) bead of Motorcraft High Performance Engine RTV Silicone to the sealing surface of the crankshaft rear seal retainer.

    Ford Taurus. Engine

  1. NOTE: Use the 2 handles during installation to avoid touching the sealant.

    NOTE: Lubricate the crankshaft rear seal with clean engine oil.

    Install the crankshaft rear seal retainer at an angle above the oil pan flange to avoid scraping off the sealer. Tilt the seal retainer up and onto the rear of the cylinder block.

    Ford Taurus. Engine

  1. Install the 8 bolts and tighten in the sequence shown to 10 Nm (89 lb-in).

    Ford Taurus. Engine

  1. Install the 2 oil pan to crankshaft rear seal retainer bolts.
    • Tighten to 10 Nm (89 lb-in) plus an additional 45 degrees.

    Ford Taurus. Engine

  1. Install the Crankshaft Position (CKP) sensor and install the bolt.
    • Tighten to 10 Nm (89 lb-in).

    Ford Taurus. Engine

  1. Connect the CKP sensor electrical connector.

    Ford Taurus. Engine

  1. Install the crankshaft sensor ring.

    Ford Taurus. Engine

  1. Install the flexplate. For additional information, refer to Flexplate in this section.

Oil Pump

Special Tool(s)

Ford Taurus. Engine

Removal

NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.

  1. Remove the engine front cover. For additional information, refer to Engine Front Cover in this section.
  1. Rotate the crankshaft clockwise and align the timing marks on the intake Variable Camshaft Timing (VCT) assemblies as shown.

    Ford Taurus. Engine

  1. Remove the 3 bolts and the LH valve train oil tube.

    Ford Taurus. Engine

  1. NOTE: The Camshaft Holding Tool will hold the camshafts in the Top Dead Center (TDC) position.

    Install the Camshaft Holding Tool onto the flats of the LH camshafts.

    Ford Taurus. Engine

  1. Remove the 3 bolts and the RH valve train oil tube.

    Ford Taurus. Engine

  1. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install the Camshaft Holding Tool onto the flats of the RH camshafts.

    Ford Taurus. Engine

NOTE: The following 3 steps are for primary timing chains that the colored links are not visible.

  1. Mark the timing chain link that aligns with the timing mark on the LH intake VCT assembly as shown.

    Ford Taurus. Engine

  1. Mark the timing chain link that aligns with the timing mark on the RH intake VCT assembly as shown.

    Ford Taurus. Engine

  1. NOTE: The crankshaft sprocket timing mark should be between the 2 colored links.

    Mark the 2 timing chain links that align with the timing mark on the crankshaft sprocket as shown.

    Ford Taurus. Engine

  1. Remove the 2 bolts and the primary timing chain tensioner.

    Ford Taurus. Engine

  1. Remove the primary timing chain tensioner arm.

    Ford Taurus. Engine

  1. Remove the 2 bolts and the lower LH primary timing chain guide.
    • Position the timing chain aside.

    Ford Taurus. Engine

  1. Position the primary timing chain aside and remove the crankshaft timing chain sprocket.

    Ford Taurus. Engine

  1. Remove the 2 bolts and the oil pump screen and pickup tube.
    • Discard the O-ring seal.

    Ford Taurus. Engine

  1. Remove the 3 bolts and the oil pump.

    Ford Taurus. Engine

Installation

  1. Install the oil pump and the 3 bolts.
    • Tighten to 10 Nm (89 lb-in).

    Ford Taurus. Engine

  1. Using a new O-ring seal, install the oil pump screen and pickup tube and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).

    Ford Taurus. Engine

  1. Install the crankshaft timing chain sprocket with timing dot mark out.

    Ford Taurus. Engine

  1. NOTE: It may be necessary to rotate the camshafts slightly, to align the timing marks.

    Position the primary timing chain with the colored links aligned with the timing marks on the VCT assemblies and the crankshaft sprocket.

    Ford Taurus. Engine

  1. Install the lower LH primary timing chain guide and the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).

    Ford Taurus. Engine

  1. Install the primary timing chain tensioner arm.

    Ford Taurus. Engine

  1. Reset the primary timing chain tensioner.
    • Release the ratchet detent.
    • Using a soft-jawed vise, compress the ratchet plunger.
    • Align the hole in the ratchet plunger with the hole in the tensioner housing.
    • Install a suitable lockpin.

    Ford Taurus. Engine

  1. NOTE: It may be necessary to rotate the camshafts slightly to remove slack from the timing chain to install the tensioner.

    Install the primary tensioner and the 2 bolts.

    • Tighten to 10 Nm (89 lb-in).
    • Remove the lockpin.

    Ford Taurus. Engine

  1. As a post-check, verify correct alignment of all timing marks.
    • There are 48 links in between the RH intake VCT assembly colored link (1) and the LH intake VCT assembly colored link (2).
    • There are 35 links in between LH intake VCT assembly colored link (2) and the 2 crankshaft sprocket links (3).

    Ford Taurus. Engine

  1. Remove the RH Camshaft Holding Tool.

    Ford Taurus. Engine

  1. Install the RH valve train oil tube and the 3 bolts and tighten in 2 stages.
    • Stage 1: Tighten to 8 Nm (71 lb-in).
    • Stage 2: Tighten an additional 45 degrees.

    Ford Taurus. Engine

  1. Remove the LH Camshaft Holding Tool.

    Ford Taurus. Engine

  1. Install the LH valve train oil tube and the 3 bolts and tighten in 2 stages.
    • Stage 1: Tighten to 8 Nm (71 lb-in).
    • Stage 2: Tighten an additional 45 degrees.

    Ford Taurus. Engine

  1. Install the engine front cover. For additional information, refer to Engine Front Cover in this section.
    Specifications, Description and Operation, General Procedures
    SPECIFICATIONS Material General Specifications Torque Specifications a Tighten to 10 Nm (89 lb-in) plus an additional 720 degrees. b Tighten to 16 Nm (142 lb-in) plus an additional ...

    Removal
    Engine Special Tool(s) WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always prese ...

    Other materials:

    Parking Aid - Visual
    SPECIFICATIONS General Specifications DESCRIPTION AND OPERATION Parking Aid Component Location Overview The video camera system visually aids the driver while reversing or reverse parking the vehicle. For police package vehicles, the image of the area behind the vehicle is displayed in the LH s ...

    Installation
    Engine Special Tool(s) Material Lubricate the torque converter pilot hub with Multi-Purpose Grease. Remove the Torque Converter Retainer and bolt. NOTE: Align the torque converter stud marked during removal with the flexplate.Using the Floor Crane and Spreader Bar, assemble t ...

    General Procedures, Removal and Installation
    GENERAL PROCEDURES Belt-Minder Deactivating/Activating NOTE: If you are using MyKey, the Belt-Minder cannot be disabled. If the Belt-Minder has been previously disabled, it is re-enabled during the use of MyKey. Apply the parking brake before deactivating/activating the Belt-Minder. Plac ...
