Ford Taurus Service Manual: Front Suspension

SPECIFICATIONS

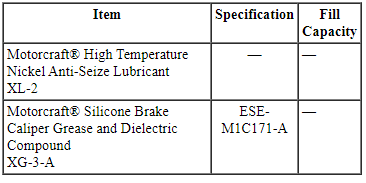

Material

Ford Taurus. Suspension

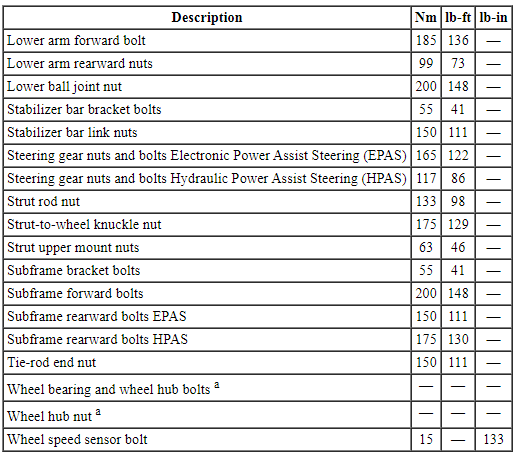

Torque Specifications

Ford Taurus. Suspension

Refer to the procedure in this section.

DESCRIPTION AND OPERATION

Front Suspension

The front suspension consists of the following components:

  • Wheel bearing and wheel hubs
  • Wheel studs
  • Lower arms
  • Stabilizer bar
  • Stabilizer bar links
  • Struts
  • Springs
  • Wheel knuckles

The front suspension utilizes a MacPherson strut system.

This suspension system incorporates a strut assembly that takes the place of the upper arm and ball joint. The strut carries out the function of a shock absorber and is encompassed by a coil spring. The strut and spring assembly supports the weight of the vehicle and is also the pivot point for the steering knuckle. This system uses a lower control arm and ball joint for the lower (unloaded) pivot point of the steering knuckle.

REMOVAL AND INSTALLATION

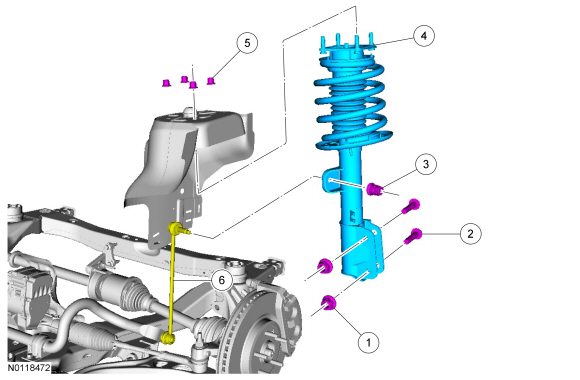

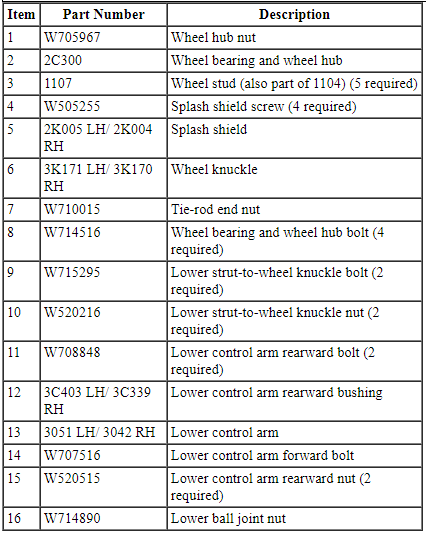

Front Suspension - Exploded View

Ford Taurus. Suspension

Ford Taurus. Suspension

Ford Taurus. Suspension

Ford Taurus. Suspension

Ford Taurus. Suspension

Ford Taurus. Suspension

  1. For additional information, refer to the procedures in this section.

Wheel Bearing and Wheel Hub

General Equipment

  • Front wheel hub remover

Removal

NOTICE: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure may result in major service expense. New parts must be installed with the same part numbers or equivalent part, if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the wheel and tire. Refer to Section 204-04.
  1. NOTE: Apply the brake to keep the halfshaft from rotating.

    NOTE: Do not discard the wheel hub nut at this time.

    Ford Taurus. Suspension

  1. Remove the brake disc. Refer to Section 206-03.
  1. NOTE: Push the halfshaft into the wheel hub to gain access for the removal of the wheel bearing and wheel hub bolts.

    General equipment: Front wheel hub remover

    Ford Taurus. Suspension

    Ford Taurus. Suspension

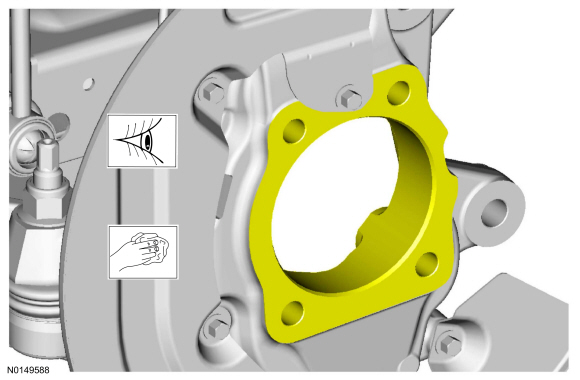

  1. NOTICE: The wheel knuckle bore must be clean enough to allow the wheel bearing and wheel hub to seat completely by hand. Do not press or draw the wheel hub and bearing into place or damage to the bearing may occur.

    NOTICE: Make sure the wheel hub-to-wheel knuckle mating surfaces are clean and free of any adhesive. Failure to clean the adhesive from both surfaces may cause bearing damage.

    Ford Taurus. Suspension

Installation

  1. Finger tight at this stage.

    Ford Taurus. Suspension

  1. NOTE: Push the halfshaft into the wheel hub to gain access for tightening the wheel bearing and wheel hub bolts.

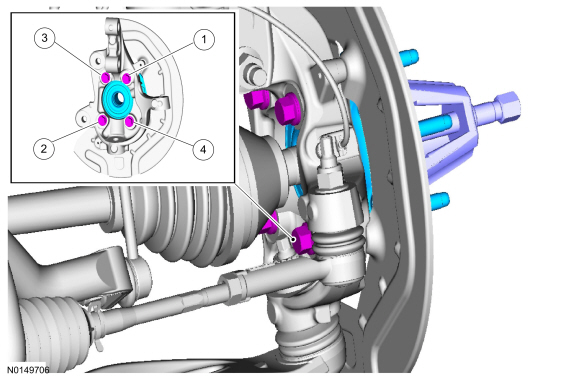

    • Tighten the new bolts to 133 Nm (98 lb-ft) in the sequence shown.

    Ford Taurus. Suspension

  1. Install the brake disc. Refer to Section 206-03.
  1. NOTICE: Do not tighten the front wheel hub nut with the vehicle on the ground. The nut must be tightened to specification before the vehicle is lowered onto the wheels. Wheel bearing damage will occur if the wheel bearing is loaded with the weight of the vehicle applied.

    NOTE: Apply the brake to keep the halfshaft from rotating and use the previously removed wheel hub nut, seat the halfshaft.

    • Tighten the previously removed nut to 350 Nm (258 lb-ft)

    Ford Taurus. Suspension

    Ford Taurus. Suspension

  1. NOTICE: The wheel hub nut contains a one time locking chemical that is activated by the heat created when it is tightened. Install and tighten the new wheel hub nut to specification within 5 minutes of starting it on the threads. Always install a new wheel hub nut after loosening or when not tightened within the specified time or damage to the components can occur.
    • Tighten the new nut to 350 Nm (258 lb-ft)

    Ford Taurus. Suspension

  1. Install the wheel and tire. Refer to Section 204-04.

Wheel Studs

Special Tool(s)

Ford Taurus. Suspension

Removal

  1. NOTICE: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure may result in major service expense. New parts must be installed with the same part numbers or equivalent part, if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

    NOTE: Make sure the steering wheel is in the unlocked position.

    Remove the brake disc. Refer to Section 206-03.
  1. Discard the specified component. Follow local disposal regulations.

    Ford Taurus. Suspension

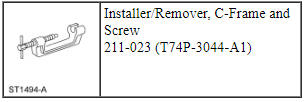

  1. Using the C-Frame and Screw Installer/Remover, remove the wheel stud.

    Ford Taurus. Suspension

Installation

  1. NOTE: Make sure to use washers that have an ID that is larger than the OD of the wheel stud serrations. Use enough washers (approximately 4) to allow the wheel stud to fully seat against the hub flange.

    Position the wheel stud in the flange, making sure the serrations on the stud line up with the serrations in the flange. Install the washers and a reversed wheel nut.

  1. NOTICE: Do not use power tools to install the wheel stud or damage to the flange may occur.

    Tighten the wheel nut until the stud is seated against the hub flange.

    Ford Taurus. Suspension

  1. Remove the wheel nut and the washers. Discard the wheel nut.
    • To install, tighten to 165 Nm (122 lb-ft) in the sequence shown.

    Ford Taurus. Suspension

  1. Install the brake disc. Refer to Section 206-03.

Lower Arm

Removal and Installation

NOTICE: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure may result in major service expense. New parts must be installed with the same part numbers or equivalent part, if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

  1. Remove the wheel and tire. For additional information, refer to Section 204-04.
  1. NOTE: Use the hex-holding feature to prevent the stud from turning while removing the nut.

    Using a crowfoot wrench, remove and discard the lower ball joint nut.

    • To install, tighten to 200 Nm (148 lb-ft).
  1. NOTICE: Use care when releasing the lower arm and knuckle into the resting position or damage to the ball joint seal may occur.

    Push the lower arm downward until the ball joint is clear of the wheel knuckle.

  1. Remove and discard the lower arm forward bolt.
    • To install, tighten the new bolt to 185 Nm (136 lb-ft).
  1. Remove and discard the lower arm rearward nuts and bolts.
    • To install, tighten the new nuts to 99 Nm (73 lb-ft).
    • Install the new lower arm rearward bolts from the bottom of the lower arm bushing with the nuts on top.
  1. If necessary, remove the lower arm rearward bushing. For additional information, refer to Lower Arm Bushing in this section.
  1. NOTICE: The lower arm forward bolt must be tightened with the weight of the vehicle on the wheels and tires or damage to the bushings may occur.

    To install, reverse the removal procedure.

Lower Arm Bushing

Special Tool(s)

Ford Taurus. Suspension

Removal

  1. Remove the lower arm. For additional information, refer to Lower Arm in this section.
  1. Index-mark the bushing-to-lower arm position for reference during the installation procedure.

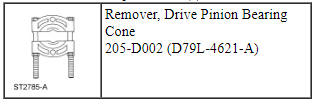

  1. NOTE: The Drive Pinion Bearing Cone Remover is used to secure the lower arm bushing while separating the bushing from the lower arm.

    Using the Drive Pinion Bearing Cone Remover, a suitable press and adapters, remove the lower arm bushing.

    Ford Taurus. Suspension

Installation

  1. NOTE: The Drive Pinion Bearing Cone Remover is used to clamp and hold the lower arm while installing the bushing.

    Install the Drive Pinion Bearing Cone Remover onto the lower arm.

    Ford Taurus. Suspension

  1. Transfer the index mark to the new lower arm bushing.
  1. NOTE: The Drive Pinion Bearing Cone Remover is used to clamp and hold the lower arm while installing the bushing.

    Align the index marks and using the Drive Pinion Bearing Cone Remover, a suitable press and adapters, install a new lower arm bushing.

    Ford Taurus. Suspension

  1. Install the lower arm. For additional information, refer to Lower Arm in this section.

Stabilizer Bar

Removal and Installation

NOTICE: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure may result in major service expense. New parts must be installed with the same part numbers or equivalent part, if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

NOTE: Make sure the steering wheel is in the unlocked position.

NOTE: The stabilizer bushing and bracket are part of the stabilizer bar assembly. The stabilizer bar will not turn easily in the bushing.

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02.
  1. Remove the wheel and tire. For additional information, refer to Section 204-04.
  1. Disconnect the Heated Oxygen Sensor (HO2S) electrical connector and unclip the connector from the subframe.

    Ford Taurus. Suspension

All-Wheel Drive (AWD) vehicles

  1. Remove the exhaust Y-pipe. For additional information, refer to Section 309-00.

All vehicles

  1. NOTICE: Do not use power tools to remove the stabilizer bar link nut. Damage to the stabilizer link ball joint or boot may occur.

    NOTE: To remove the stabilizer bar link nut, first loosen the nut, then use the hex-holding feature to prevent the ball joint from turning while removing the stabilizer bar link nut.

    Remove and discard the stabilizer bar link lower nuts.
    • To install, tighten the new nuts to 150 Nm (111 lb-ft).
  1. NOTE: No special tools are necessary to separate the tie rod from the front knuckle; use a mallet to loosen the joint.

    Remove and discard both tie-rod end nuts and separate the tie-rod ends from the knuckles.

    • To install, tighten the new nuts to 150 Nm (111 lb-ft).
  1. NOTE: Install the new lower arm rearward bolts from the bottom of the lower arm bushing with the nuts on top.

    Remove and discard the 4 lower arm rearward nuts and bolts.

    • To install, tighten the new bolts to 99 Nm (73 lb-ft).
  1. Remove and discard the 2 lower arm forward bolts.
    Position both lower arms aside.
    • To install, tighten the new bolts to 185 Nm (136 lb-ft).
  1. Using a suitable screw-type jackstand, support the rear of the subframe.
  1. Remove the 2 steering gear nuts and bolts.
    • Vehicles with Electronic Power Assist Steering (EPAS)
      • To install, tighten the nuts to 165 Nm (122 lb-ft).
    • Vehicles with Hydraulic Power Assist Steering (HPAS)
      • To install, tighten the new nuts to 117 Nm (86 lb-ft).

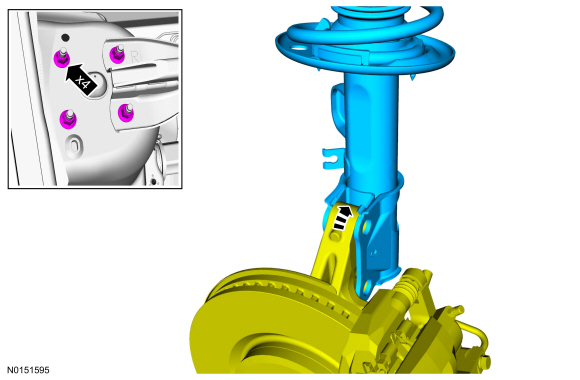

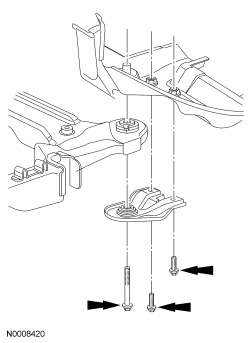

  1. Remove and discard the 4 subframe bracket bolts.
    • To install, tighten the new bolts to 55 Nm (41 lb-ft).
  1. Remove and discard the subframe forward bolts.
    • To install, tighten the new bolts to 200 Nm (148 lb-ft).
  1. Remove and discard the subframe rearward bolts.
    • Vehicles with EPAS
      • To install, tighten the new bolts to 150 Nm (111 lb-ft).
    • Vehicle with HPAS
      • To install, tighten the new bolts to 175 Nm (130 lb-ft).

    Ford Taurus. Suspension

  1. Lower the rear of the subframe approximately 51 mm (2 in).

    Ford Taurus. Suspension

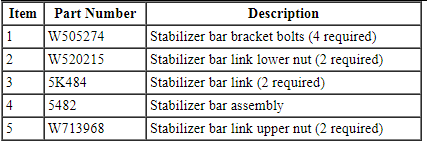

  1. Remove and discard the LH and RH stabilizer bar bracket bolts.
    • To install, tighten the new bolts to 55 Nm (41 lb-ft).
  1. Remove the stabilizer bar by guiding it between the subframe and the steering gear toward the RH side of the vehicle.
  1. To install, reverse the removal procedure.

Stabilizer Bar Link

Removal and Installation

NOTICE: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure may result in major service expense. New parts must be installed with the same part numbers or equivalent part, if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02.

NOTICE: Do not use power tools to remove the stabilizer bar link nuts. Damage to the stabilizer bar link ball joints or boots may occur.

NOTE: To remove the stabilizer bar link nuts, first loosen the nuts, then use the hex-holding feature to prevent the stabilizer bar link ball joints from turning while removing the stabilizer bar link nuts.

  1. Remove and discard the stabilizer bar link lower nut.
    • To install, tighten the new nut to 150 Nm (111 lb-ft).
  1. Remove and discard the stabilizer bar link upper nut.
    • To install, tighten the new nut to 150 Nm (111 lb-ft).
  1. Remove the stabilizer bar link.
  1. NOTE: To install the nuts, use the hex-holding feature to prevent the stabilizer link ball joints from turning while installing the nuts until snug. Finally, tighten the nuts using a socket and a torque wrench.

    To install, reverse the removal procedure.

Wheel Knuckle

Special Tool(s)

Ford Taurus. Suspension

Removal

NOTICE: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure may result in major service expense. New parts must be installed with the same part numbers or equivalent part, if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

  1. Remove the wheel and tire. For additional information, refer to Section 204-04.
  1. NOTE: Do not discard the wheel hub nut at this time.

    Remove the wheel hub nut.

  1. Remove the brake disc. For additional information, refer to Section 206-03.
  1. NOTE: No special tools are necessary to separate the tie rod from the front knuckle; use a mallet to loosen the joint.

    Remove and discard the tie-rod end nut, then separate the tie rod from the wheel knuckle.

  1. Remove the bolt and the wheel speed sensor from the wheel knuckle. Position the wheel speed sensor aside.

    Ford Taurus. Suspension

  1. NOTE: Use the hex-holding feature to prevent the stud from turning while removing the nut.

    Using a crowfoot wrench, remove and discard the lower ball joint nut.

  1. Push the lower arm downward until the ball joint is clear of the wheel knuckle.
  1. NOTICE: Do not allow the halfshaft to move outboard. Overextension of the tripod Constant Velocity (CV) joint may result in separation of internal parts, causing failure of the halfshaft.

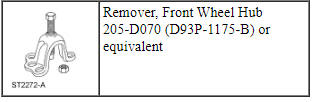

    Using the Front Wheel Hub Remover, press the halfshaft from the wheel bearing and hub. Support the halfshaft in a level position.

    Ford Taurus. Suspension

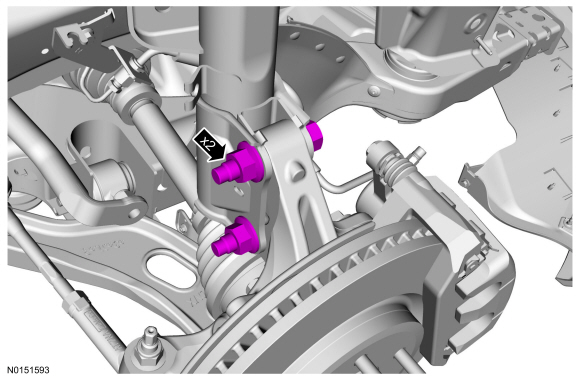

  1. Remove and discard the strut-to-wheel knuckle nut and flagbolt.
  1. Remove the wheel knuckle.
    • If necessary, remove the wheel hub and bearing. For additional information, refer to Wheel Bearing and Wheel Hub in this section.

Installation

  1. Position the wheel knuckle and install a new strut-to-wheel knuckle nut and flagbolt.
    • Tighten to 175 Nm (129 lb-ft).
  1. While supporting the halfshaft in a level position, install the halfshaft into the wheel bearing and hub.
  1. NOTICE: Use care not to damage the ball joint seal while installing the ball joint stud into the wheel knuckle.

    Push the lower arm downward and install the ball joint stud into the wheel knuckle.

  1. NOTE: Use the hex-holding feature to prevent the stud from turning while installing the nut.

    Using a crowfoot wrench, install the new lower ball joint nut.

    • Tighten to 200 Nm (148 lb-ft).
  1. Position the wheel speed sensor and install the bolt.
    • Tighten to 15 Nm (133 lb-in).

    Ford Taurus. Suspension

  1. Position the tie-rod end stud into the wheel knuckle and install a new tie-rod end nut.
    • Tighten to 150 Nm (111 lb-ft).
  1. Install the brake disc. For additional information, refer to Section 206-03.
  1. NOTICE: Do not tighten the front wheel hub nut with the vehicle on the ground. The nut must be tightened to specification before the vehicle is lowered onto the wheels. Wheel bearing damage will occur if the wheel bearing is loaded with the weight of the vehicle applied.

    NOTE: Apply the brake to keep the halfshaft from rotating.

    Using the previously removed hub nut, seat the halfshaft.
    • Tighten to 350 Nm (258 lb-ft).
    • Remove and discard the hub nut.
  1. NOTICE: The wheel hub nut contains a one-time locking chemical that is activated by the heat created when it is tightened. Install and tighten the new wheel hub nut to specification within 5 minutes of starting it on the threads. Always install a new wheel hub nut after loosening or when not tightened within the specified time or damage to the components can occur.

    NOTE: Apply the brake to keep the halfshaft from rotating.

    Install a new hub nut.
    • Tighten to 350 Nm (258 lb-ft).
  1. Install the wheel and tire. For additional information, refer to Section 204-04.

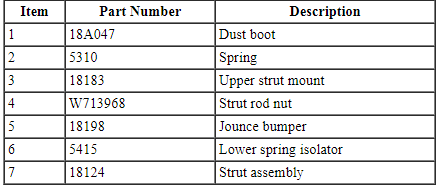

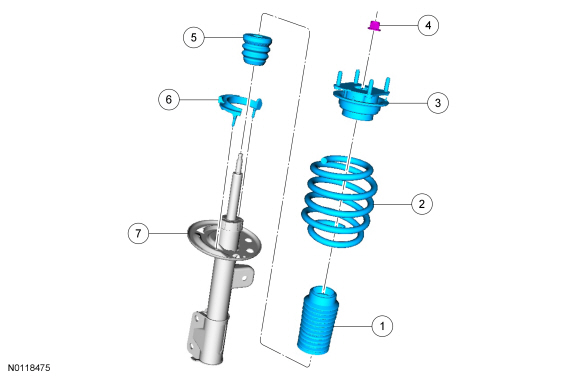

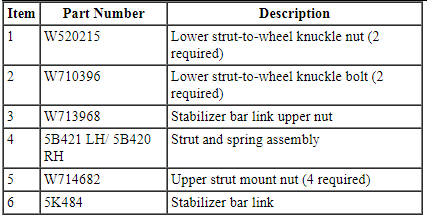

Strut and Spring Assembly

Removal

WARNING: Do not apply heat or flame to the shock absorber or strut tube. The shock absorber and strut tube are gas pressurized and could explode if heated. Failure to follow this instruction may result in serious personal injury.

WARNING: Keep all body parts clear of shock absorbers or strut rods. Shock absorbers or struts can extend unassisted. Failure to follow this instruction may result in serious personal injury.

NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

  1. Remove the wheel and tire. Refer to Section 204-04.

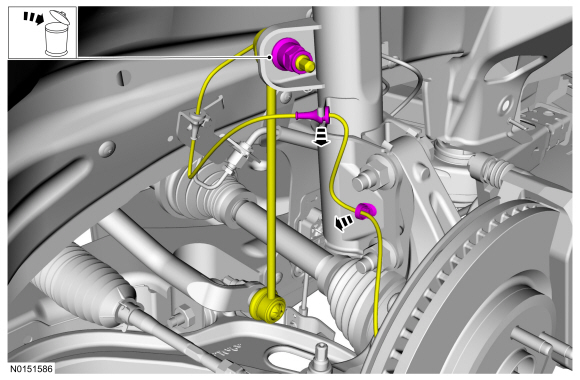

    Ford Taurus. Suspension

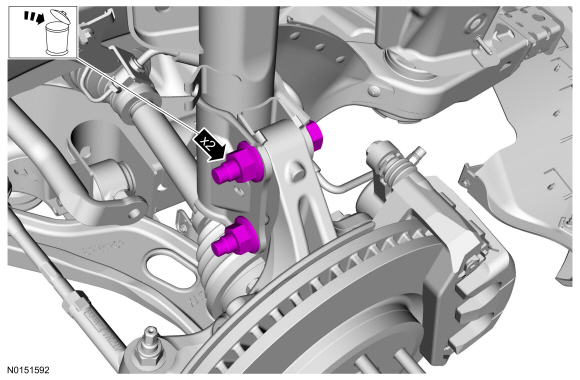

    Ford Taurus. Suspension

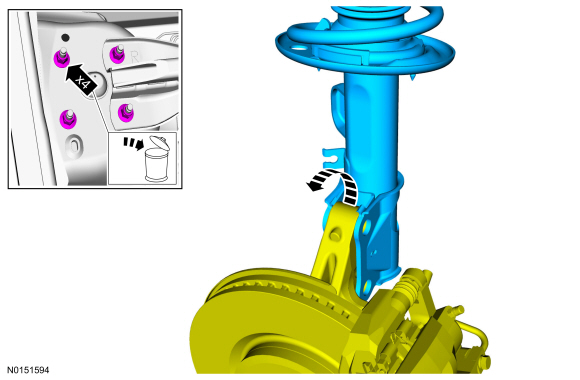

    Ford Taurus. Suspension

Installation

    • Tighten to 63 Nm (46 lb-ft).

    Ford Taurus. Suspension

    • Tighten to 225 Nm (166 lb-ft).

    Ford Taurus. Suspension

    • Tighten to 150 Nm (111 lb-ft).

    Ford Taurus. Suspension

  1. Install the wheel and tire. Refer to Section 204-04.
  1. Check front camber adjustment. Refer to Section 204-00

DISASSEMBLY AND ASSEMBLY

Strut and Spring Assembly

Material

Ford Taurus. Suspension

Ford Taurus. Suspension

Ford Taurus. Suspension

Disassembly and Assembly

WARNING: Do not apply heat or flame to the shock absorber or strut tube. The shock absorber and strut tube are gas pressurized and could explode if heated. Failure to follow this instruction may result in serious personal injury.

WARNING: Keep all body parts clear of shock absorbers or strut rods. Shock absorbers or struts can extend unassisted. Failure to follow this instruction may result in serious personal injury.

NOTICE: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure may result in major service expense. New parts must be installed with the same part numbers or equivalent part, if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

NOTICE: When installing a suitable spring compressor, use care not to damage the spring coating.

  1. Remove the strut and spring assembly. For additional information, refer to Strut and Spring Assembly in this section.
  1.  WARNING: Coil springs and strut assemblies are compressed under extreme load. Always use a spring compressor for disassembly. Follow procedure instructions carefully and make sure the spring compressor has the correct spring plates or adapters. Failure to follow these instructions may result in serious personal injury.

    NOTE: Use the hex-holding feature to prevent the shock absorber rod from turning while removing or installing the strut rod nut.

    Using a suitable spring compressor, slightly compress the spring to remove initial tension. Using the hex-holding feature to hold the strut rod, loosen the strut rod nut. Continue to compress the spring until tension is relieved.
  1. Using the hex-holding feature to hold the strut rod, remove and discard the strut rod nut.
    • To install, tighten the new nut to 133 Nm (98 lb-ft).
  1. Inspect the upper strut mount and seat-bearing assembly. The spring insulator should not be cracked, torn or distorted. The strut bearing should turn freely without grinding. Install a new upper strut mount, if necessary.
  1. Decompress and remove the spring. Remove the dust boot and jounce bumper.
    • To maintain wheel camber:

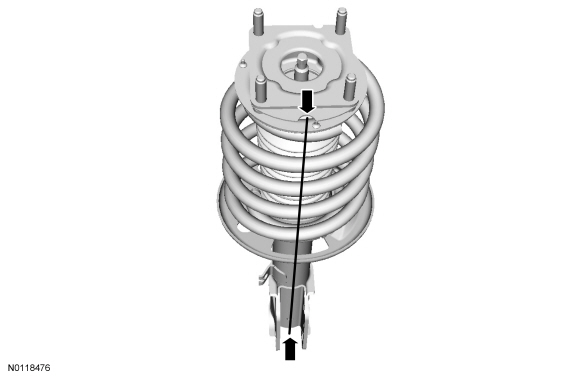

      • position the notch and arrow on the upper strut mount outboard opposite the center of the mounting flanges on the strut.
    • To adjust camber +0.5 degrees:
      • position the notch and arrow on the upper strut mount inboard aligned with the center of the mounting flanges on the strut.

    Ford Taurus. Suspension

    Ford Taurus. Suspension

  1. NOTICE: Do not overtighten the strut rod nut. Damage to the nut or strut rod may occur.

    NOTE: Make sure the spring is correctly seated in both spring seats.

    NOTE: During assembly, apply the specified silicone brake grease to the strut rod and the top and sides of the outermost part of the dust boot.

    To assemble, reverse the disassembly procedure.
    Suspension System - General Information
    SPECIFICATIONS Alignment Specifications a Camber Total/Split = LH Camber - RH Camber b Caster Total/Split = LH Caster - RH Caster General Specifications Torque Specifications DESCRIPTION ...

    Rear Suspension
    SPECIFICATIONS Torque Specifications a Refer to the procedure in this section. DESCRIPTION AND OPERATION Rear Suspension The rear suspension consists of the following components: Lower arm(s) ...

    Other materials:

    Specifications, Description and Operation
    SPECIFICATIONS Torque Specifications DESCRIPTION AND OPERATION Rear View Mirrors Exterior, Power Overview Power mirrors allow the LH and RH exterior mirror glass to be positioned electronically. The position of the power mirror glass is controlled by the exterior mirror control switch. Selecting ...

    Specifications, Description and Operation
    SPECIFICATIONS Torque Specifications DESCRIPTION AND OPERATION Information and Entertainment System Component Location Speaker - A-pillar Global Positioning System Module (GPSM) Speaker - instrument panel Microphone Front Display Interface Module (FDIM) Front Controls Interface Module (FCIM) ...

    Parking brake
    WARNING: If the parking brake is fully released, but the brake warning lamp remains illuminated, then driving your vehicle could result in reduced braking ability, increased stopping distances and potential loss of brakes. See your authorized dealer as soon as possible. WARNING: Always set the p ...
